31 60... Notes on removing and installing Low Profile band clamps: Removing

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Place special tool 31 5 200 on tabs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

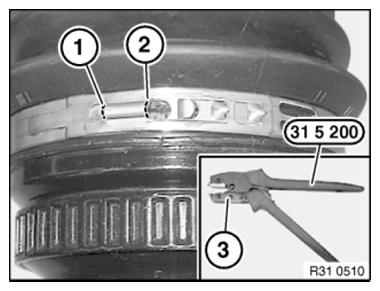

Fig 1: Placing Special Tool (31 5 200) On Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Compress Low Profile band clamp with special tool 31 5 200 until end of band clamp (1) lifts up.

Relieve tension on special tool and remove Low Profile band clamp.

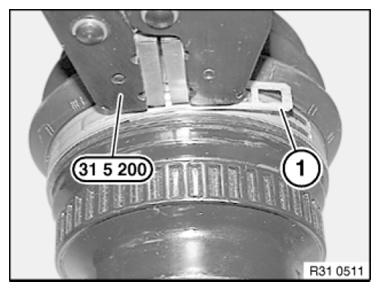

Fig 2: Compressing Low Profile Band Clamp With Special Tool (31 5 200)

Courtesy of BMW OF NORTH AMERICA, INC.
