31 11 001 Replacing front axle support (all-wheel drive vehicle): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
When supporting components, make sure that:

the vehicle can no longer be raised or lowered
the vehicle does not lift off the locating plates on the vehicle hoist.

IMPORTANT: Before lowering/removing front axle support:
Observe SAFETY INFORMATIONS for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.

WARNING: SECURE ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL to prevent it from falling down.

Necessary preliminary tasks:

Secure ENGINE IN INSTALLATION POSITION .
Lower FRONT AXLE SUPPORT .
Remove HYDRAULIC STEERING GEAR .
Remove BOTH LOWER CONTROL ARMS FROM FRONT AXLE CARRIER .
Remove BOTH TENSION STRUTS FROM FRONT AXLE CARRIER .

IMPORTANT: Only F01/F02 N63 all-wheel drive vehicle with Dynamic Drive:
If applicable, convert/replace acoustic strut (1).

Installation note:

Tightening torque 31 10 3AZ .

Insert BLIND RIVET NUTS for the acoustic strut when installing a new front axle support.

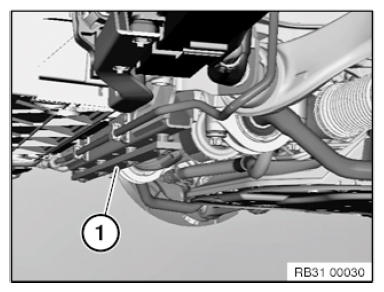

Fig 1: Identifying Acoustic Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Remove both engine mounts from front axle support. See RIGHT ENGINE MOUNT and LEFT ENGINE MOUNT .

Take down the front axle support and place on a suitable support.

Installation note:

Use previous front axle support as a template for modifying or replacing small parts.

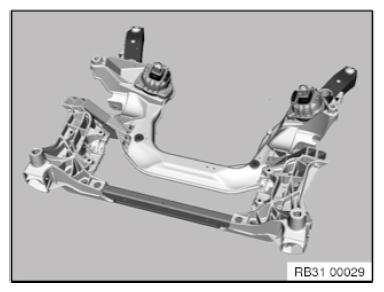

Fig 2: Identifying Front Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.
