52 14... Replacing heating element for left or right front seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seat fabric.
- SEAT COVER (NORMAL/ELECTRIC)
- SEAT COVER FOR DRIVER'S SEAT (COMFORT)
- SEAT COVER (SPORT)
- SEAT COVER (NORMAL/ELECTRIC, UP TO 09/09)
- SEAT COVER (COMFORT, FROM 09/09)
- SEAT COVER (SPORT, 09/09 ON)
Remove backrest cover.
- BACKREST COVER (NORMAL/ELECTRIC)
- BACKREST COVER (COMFORT)
- BACKREST COVER (SPORT)
- BACKREST COVER (NORMAL/ELECTRICAL)
- BACKREST COVER (COMFORT)
- BACKREST COVER (SPORT)

NOTE: Side heating elements (side sections) are bonded with a foam section and cannot be separated from each other without causing damage.
Foam section and heating elements must be replaced.

Check new foam section:

No obvious damage or material defects
All trim wires present in foam
No bubbles in foam section
No dirt/contamination on foam or residual foam
Pay attention to foam section on left and right

Check new heating elements:

No obvious damage or material defects
All tear-off film pieces presents
Note variant by examining label on cable

Stick on bead parts at top (1) and bottom (2):

Detach adhesive film from left or right bead parts in succession and stick on heating elements along bead part edges.
Press down evenly in outwards direction

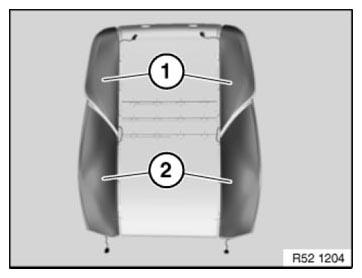

Fig 1: Identifying Top And Bottom Bead Parts
Courtesy of BMW OF NORTH AMERICA, INC.

Stick on bead parts (1):

Detach adhesive film from left or right bead part (1) and stick on heating element along bead part edges.
Press down evenly in outwards direction

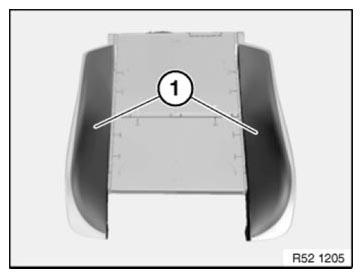

Fig 2: Identifying Bead Parts
Courtesy of BMW OF NORTH AMERICA, INC.

Check laying of heating elements:

Heating elements laid without folds
Heating elements correctly positioned
All bonding surfaces stuck on
