52 25... Removing and installing button and trim for button
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

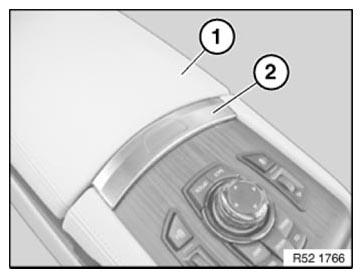

Open cover (1).
IMPORTANT:
Tape off working area with fabric adhesive tape. Risk of damage!
Lever out trim (2) with plastic wedge in upward direction.

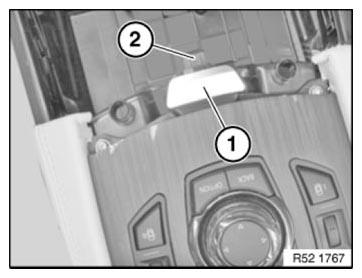

Unclip button (1) towards top.
Remove spring underneath.
Remove locking part (2) towards front.
Installation note:
Make sure spring is correctly seated under button (1).
