31 11 001 Replacing front axle support
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Before removing front axle support:
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.
WARNING:
Secure engine in installation position with special tool to prevent it from falling down. See SECURING ENGINE IN INSTALLATION POSITION (N55)
or SECURING ENGINE IN INSTALLATION POSITION (N63)
.
Necessary preliminary tasks:
- Lower front axle support.
- Remove BOTH LOWER CONTROL ARMS FROM FRONT AXLE SUPPORT .
- Remove BOTH TRAILING LINKS FROM FRONT AXLE SUPPORT .
- Remove HYDRAULIC STEERING GEAR .

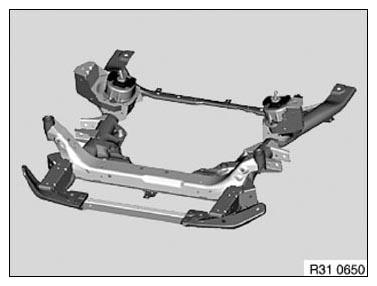

Graphic shows: F01
Remove both engine mounts from front axle support. See RIGHT MOUNT and LEFT MOUNT .
Take front axle support down and set down on a suitable surface.
Installation note:
Use previous front axle support as a template for modifying or replacing small parts.
Installation note:
Only on F01/02 vehicles with ARS:
Adapt holder of ARS hydraulic line if required.

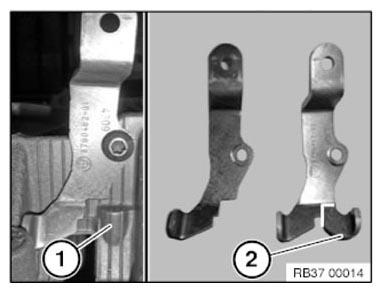

Due to a modification on axle support (1), if necessary cut off tab (2) at the mark!
After installation
- Perform wheel alignment check. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
