61 31 084 Removing and installing/replacing switch for automatic tailgate activation

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Removal

Lever switch for automatic operation of tailgate (1) out of tailgate trim panel (2) with special tool 00 9 325 .

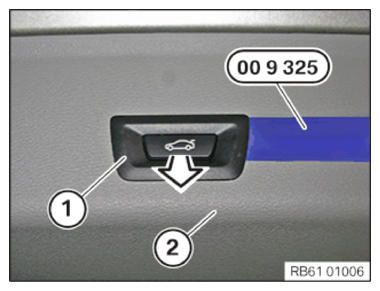

Fig 1: Removing Tailgate Lever Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) on switch for automatic operation of tailgate (2) and disconnect.

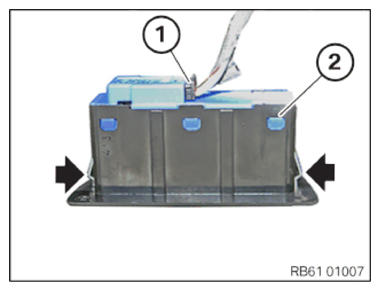

Fig 2: Disconnecting Tailgate Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

NOTE: Retaining clips on switch for automatic operation of tailgate (2) must not be missing or damaged.

Connect connector (1) to switch for automatic operation of tailgate (2).

Fig 3: Connecting Tailgate Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Insert switch for automatic operation of tailgate (1) into tailgate trim panel (2).

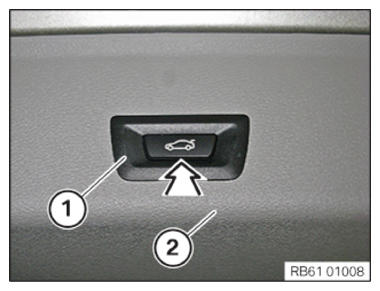

Fig 4: Inserting Tailgate Lever Switch

Courtesy of BMW OF NORTH AMERICA, INC.
