13 62 582 Removing and installing/replacing oil temperature sensor (N55 Hybrid)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
The following points must be strictly observed prior to starting work :
The following points must be strictly observed prior to starting work :
- Observe SAFETY INFORMATION for handling hybrid cars.
Necessary preliminary tasks:
- Switch off ignition.
- Remove THROTTLE VALVE ASSEMBLY .
Recycling:
Catch and dispose of emerging engine oil.
Observe country-specific waste disposal regulations.

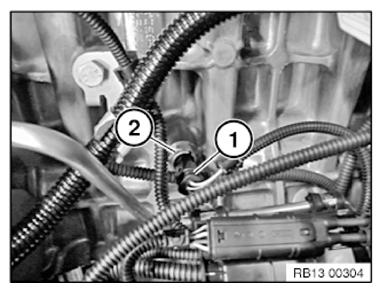

Unlock connector (1) and remove.
Release oil temperature sensor (2).
Tightening torque 13 62 8AZ .
NOTE:
Add final details to vehicle
Check engine oil level. Top up engine oil if necessary.
