61 35 177 Removing and installing (replacing) rain/light sensor
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Necessary preliminary tasks:
Version with Autobeam:
- Remove INTERIOR REAR-VIEW MIRROR

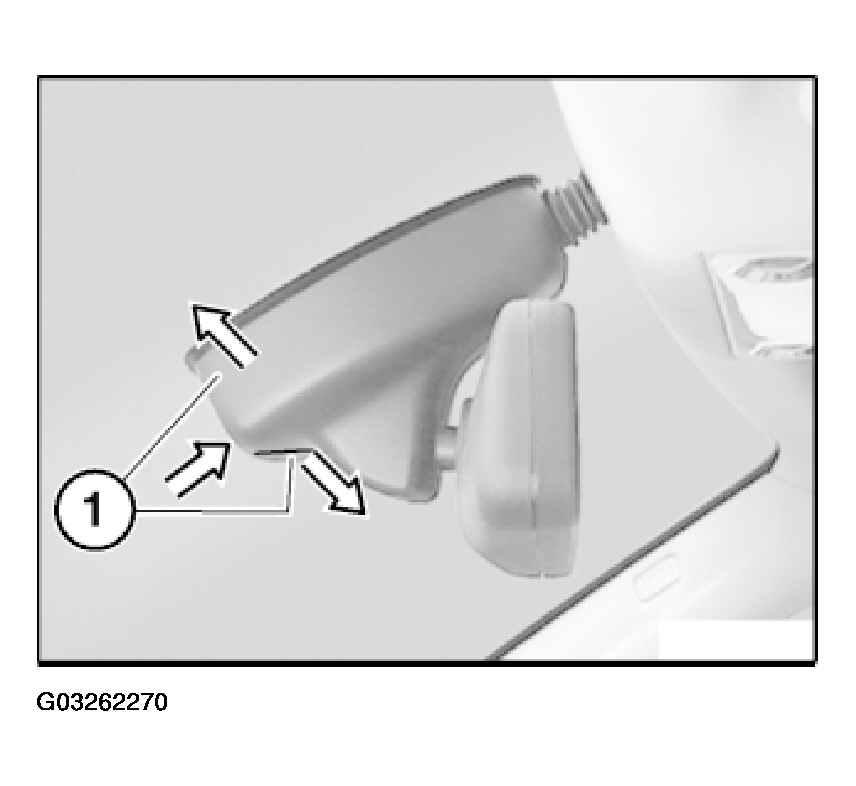

Detach two-part mirror base cover (1) by pressing from below.
Feed out two-part mirror base cover (1) and remove.
NOTE:
Catches of two-part mirror base cover (1) must not be damaged.

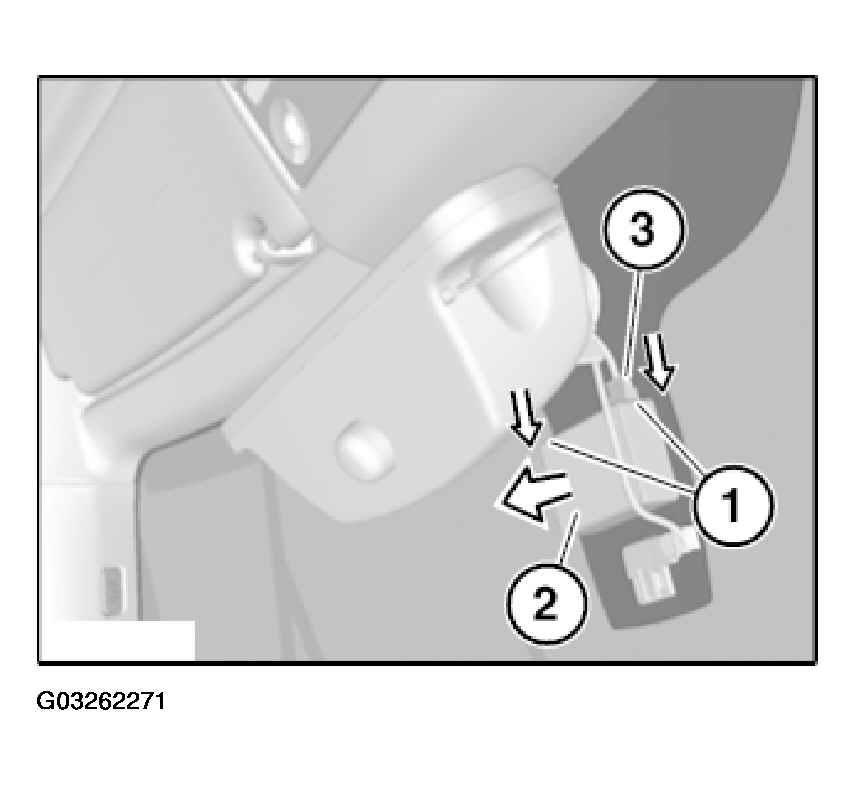

Disconnect plug connection (3).
Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.
Installation:
Do not damage optical element covered by rain/light sensor (2).
If necessary, initialize RAIN/LIGHT SENSOR .
Replacement:
Carry out PROGRAMMING/CODING .
