61 35 970 Removing And Installing/Replacing Luggage Compartment Antenna For Comfort Access System
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment floor trim panel, refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
- Remove control unit cover

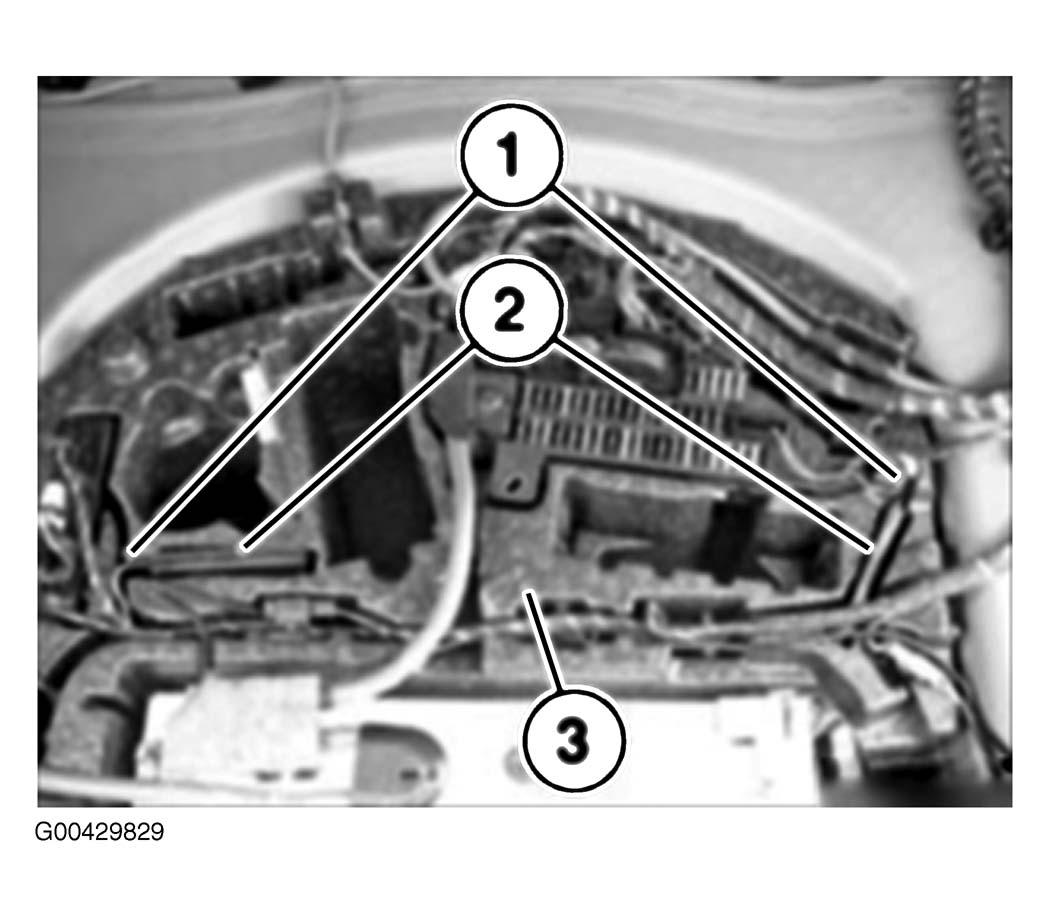

Disconnect plug connection (1).
Pull luggage compartment antenna (2) for comfort access system from control unit receptacle (3).
