84 11 620 Removing and installing transmit-receive unit

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

Remove flap in luggage compartment trim panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Unscrew nuts (1).

Remove support for side member at rear left (2).

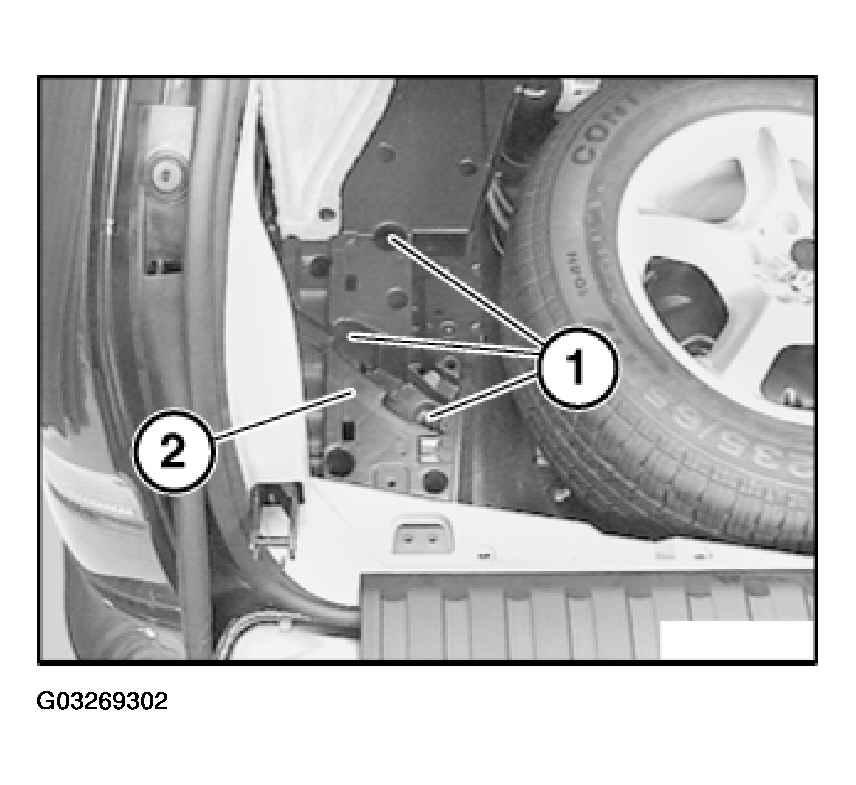

Fig 1: Removing Support For Side Member At Rear Left

Courtesy of BMW OF NORTH AMERICA, INC.

Release cap nuts (1).

Remove retaining bracket (2) and transmit-receive unit (3) in direction of arrow.

Disconnect plug connections (4).

Installation:

Replace cap nuts (1).

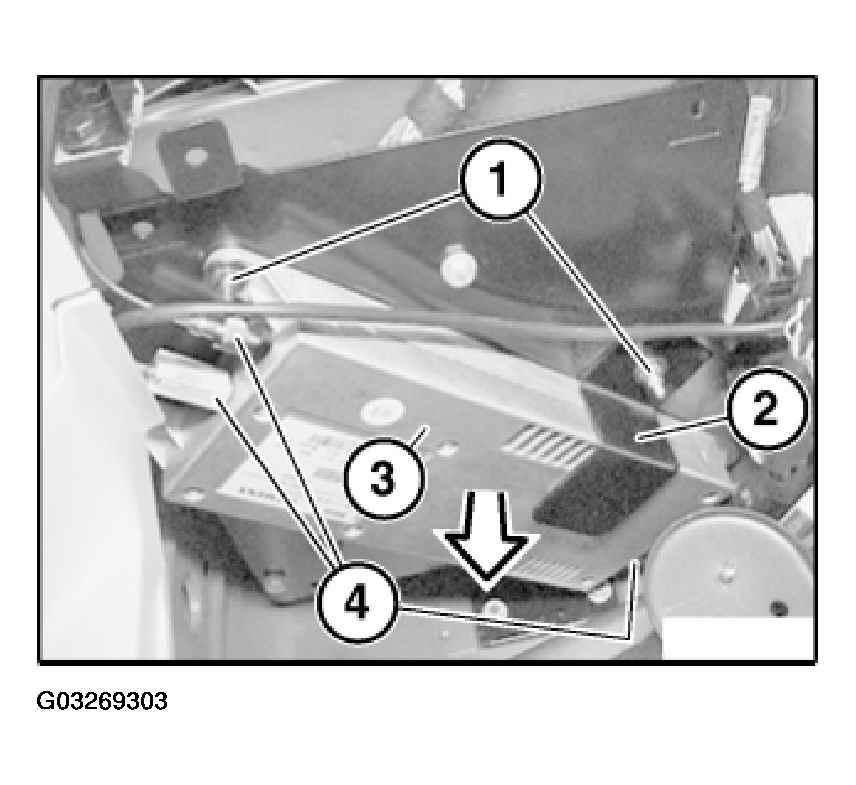

Fig 2: Removing Transmit-Receive Unit
