62 16 071 Removing and installing or speedometer-display sensor

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug-in connection at rear axle.

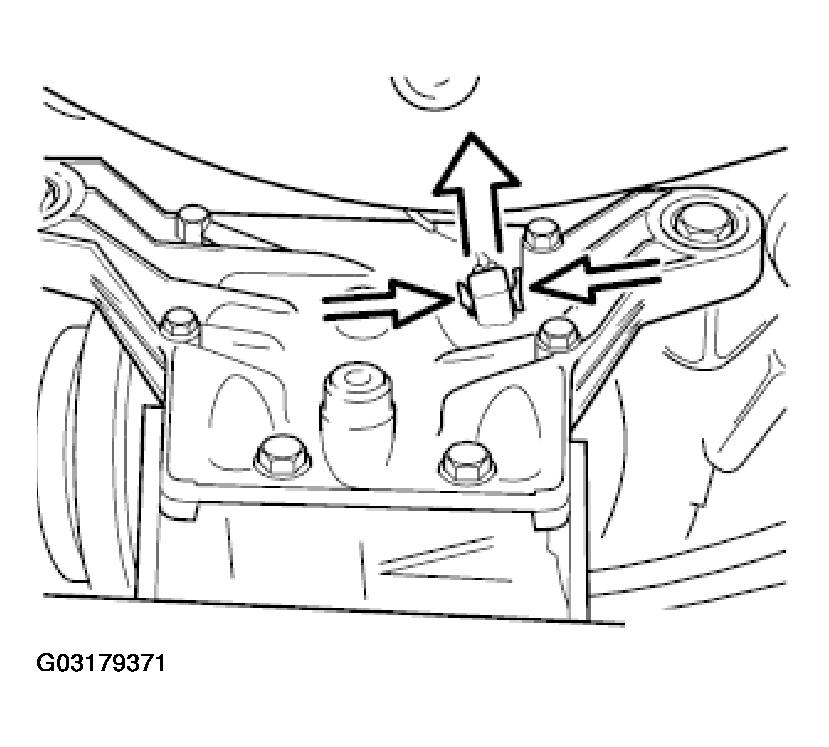

Fig 1: Disconnecting Plug-In Connection At Rear Axle

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and remove speedometer-display sensor.

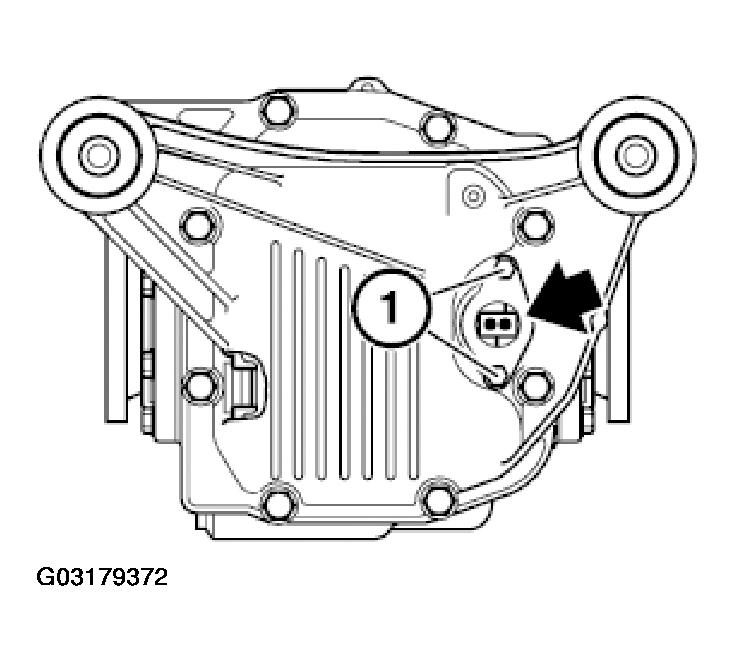

Fig 2: Removing Speedometer-Display Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Replace O-ring and coat with HLS-90 oil. Slide O-ring onto speedometer-sensor shaft as far as slip phase (A).

Install sensor with O-ring in rear axle and tighten both screws uniformly.

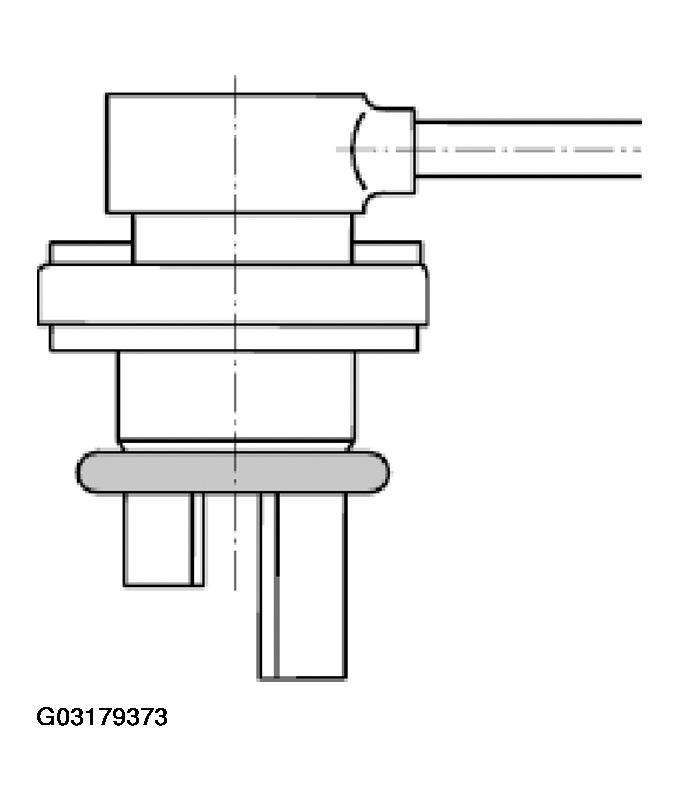

Fig 3: Installing Sensor With O-Ring In Rear Axle And Tightening Both Screws Uniformly

Courtesy of BMW OF NORTH AMERICA, INC.
