12 14 521 Replacing Crankshaft Pulse Generator (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Check function of DME.

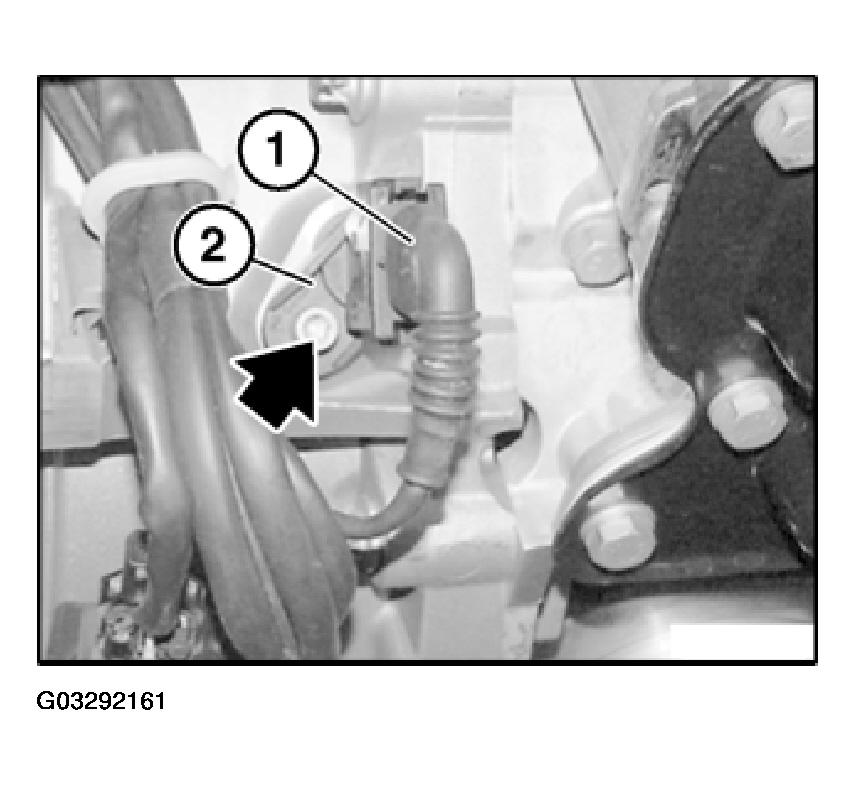

Disconnect connector (1).
Release screw (identified with arrow).
Remove pulse generator (2).
Tightening torque, refer to 12 14 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Installation:
Replace sealing ring.
Replace screw.
Check function of DME.
