52 25 ... Additional Work (Comfort) With Defective Drive For Backrest Angle Adjustment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Detach seat cover and padding (1) on inside (center armrest) of seat.

Release screws (2).

Installation:

Tightening torque, (8^±1 N.m.).

Pull gearing (3) outwards.

Backrest can now move freely.

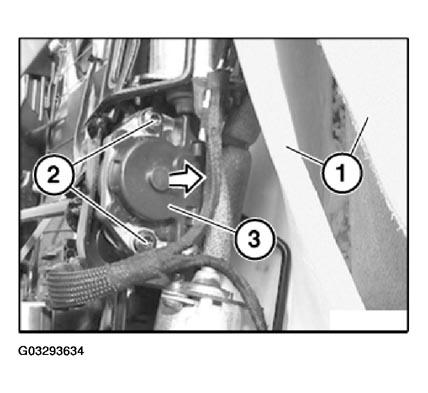

Fig 1: Screws, Gearing And Padding On Inside (Center Armrest)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before gearing can be reinstalled, both levers (1) and (2) must be synchronized.

Adjust inner lever (1) (to center armrest) so that gear wheel engages 1st tooth of lever.

Adjust outer lever (2) so that gear wheel engages 2nd tooth of lever.

Install gearing.

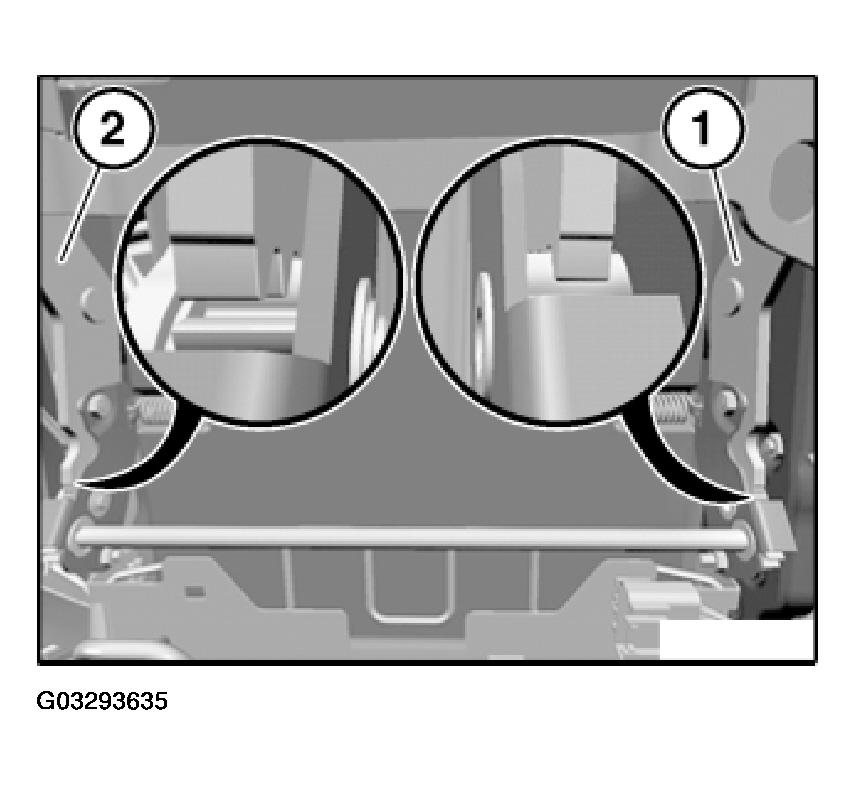

Fig 2: Inner And Outer Levers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Checking:

Measurements a and b must match up.

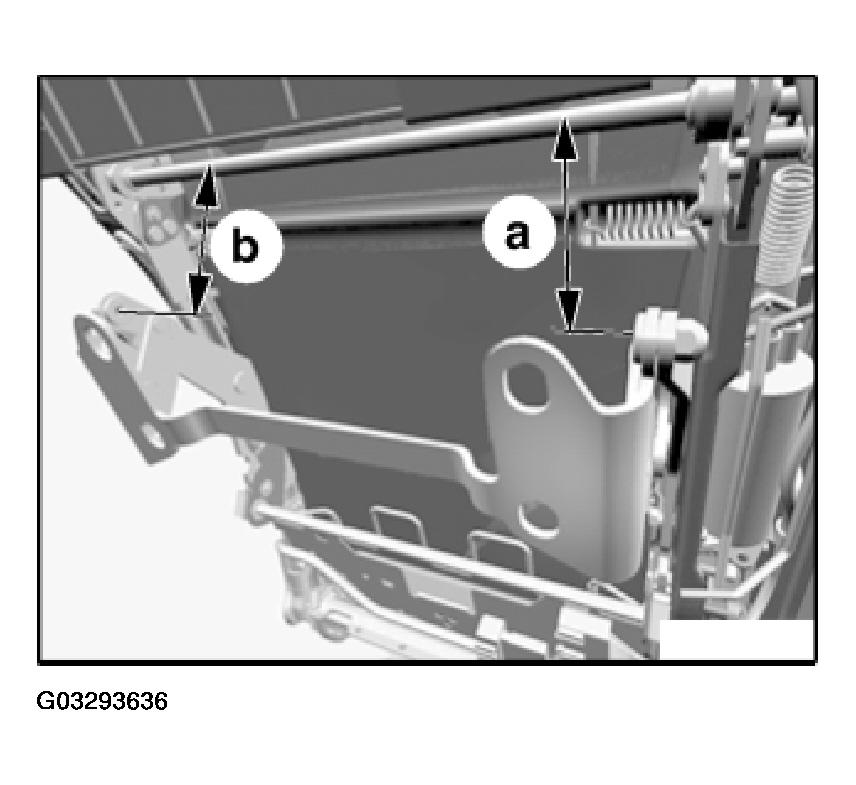

Fig 3: Measurements A And B

Courtesy of BMW OF NORTH AMERICA, INC.
