61 35 122 Removing and installing/replacing general module

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL
Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY
Remove RIGHT GLOVEBOX WITH HOUSING

Release plastic nut (1).

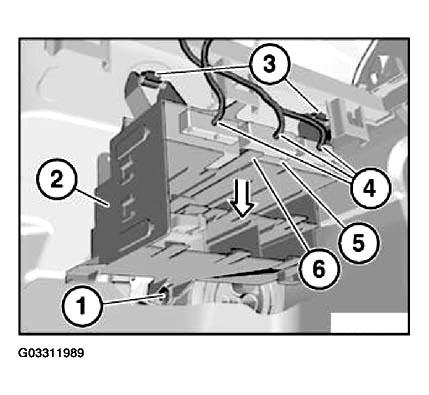

Fig 1: Removing General Module

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip device holder (2) from fixtures (3).

Unlock plug connections (4) and disconnect.

Press catch (6) and remove general module (5) towards rear.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
