61 35 285 Removing and installing (replacing) light module

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

Unlock plug connections (2) and (4) and disconnect.

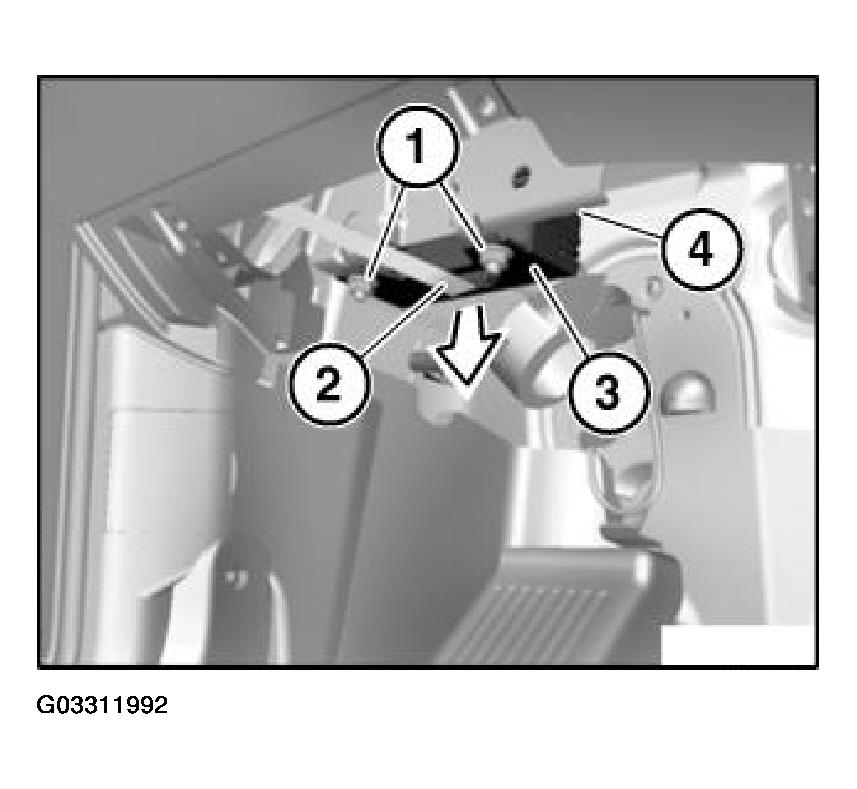

Fig 1: Removing Light Module

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1), feed out light module (3) in direction of arrow and remove.

Installation:

Make sure guides (1) of light module (2) are correctly seated in associated mountings.

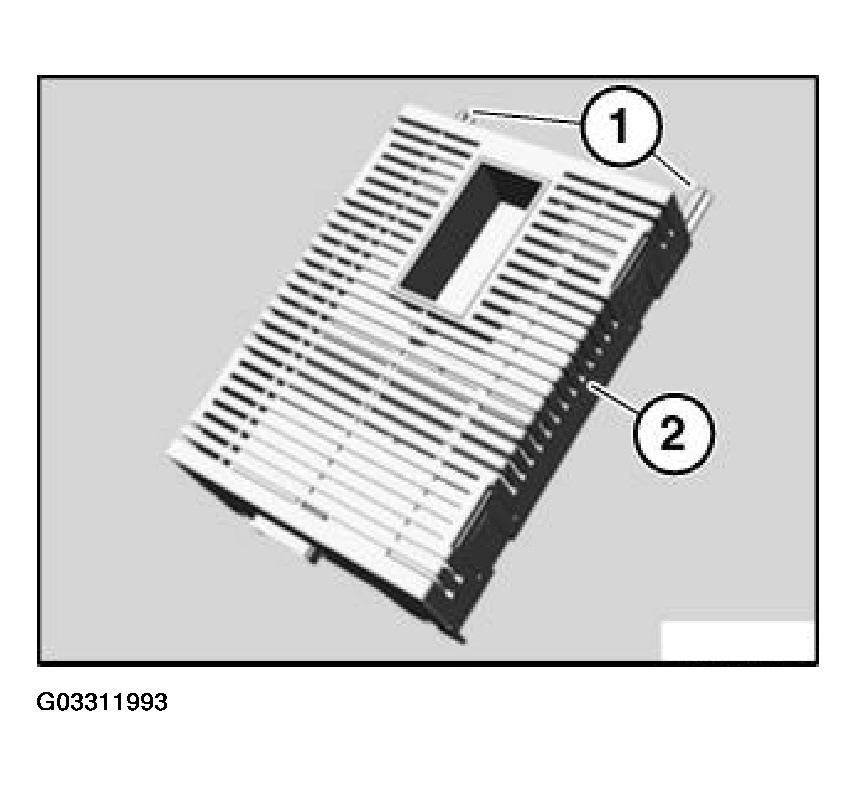

Fig 2: Inspecting Guides Of Light Module

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
