Cutting Optical Fibre To Length

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

Pull pin (1) in direction of arrow.

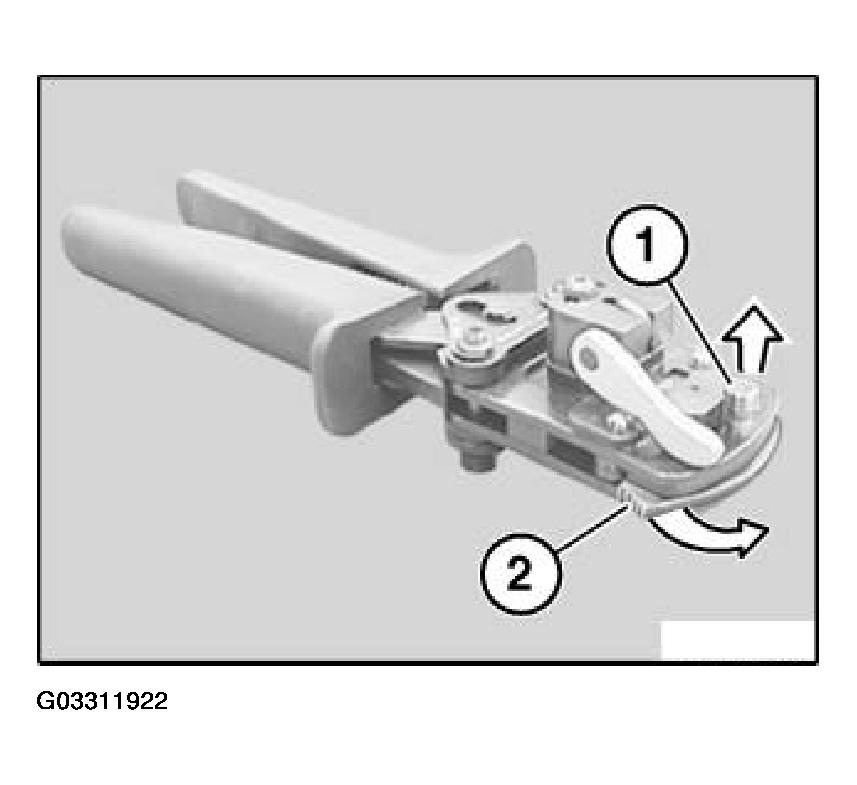

Fig 1: Pulling Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up blade retaining link (2) in direction of arrow.

WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

Fig 2: Replacing Blade

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

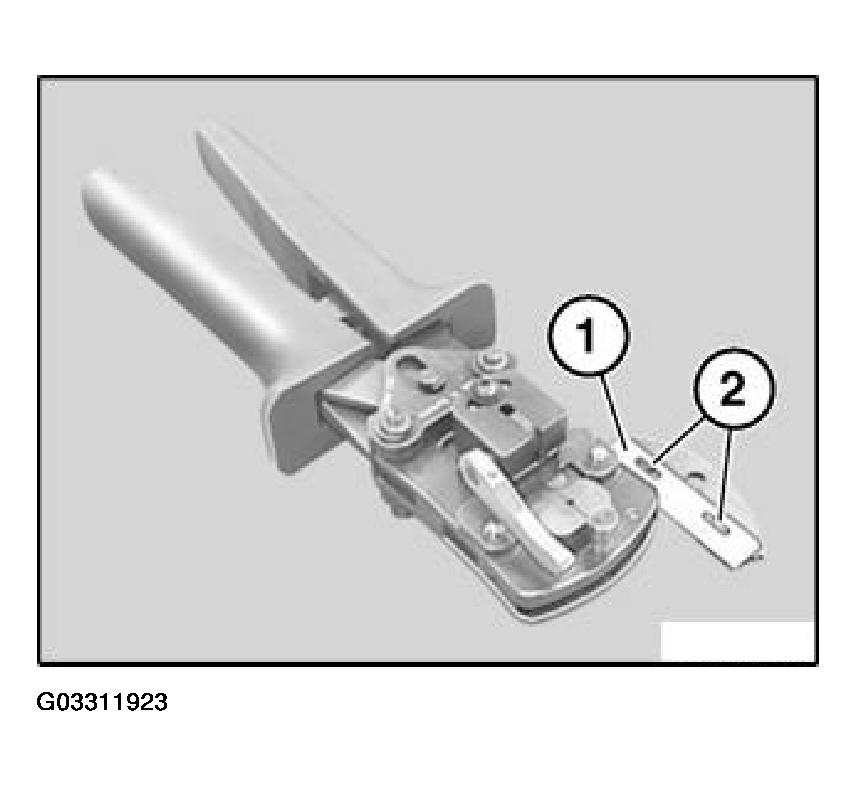

Make sure blade (1) is correctly seated on locating points (2).

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

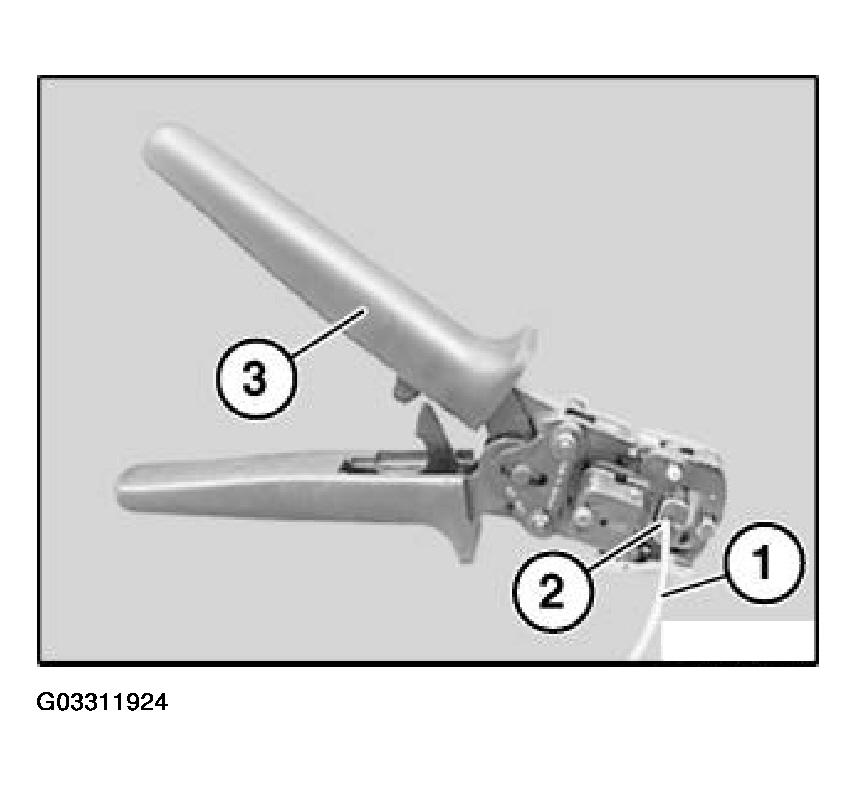

Fig 3: Cutting Optical Fibres

Courtesy of BMW OF NORTH AMERICA, INC.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).
