Cutting Optical Fibre

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Open pliers (1).

Place optical fibre (2) in cutting device (3).

Close pliers (1) and remove optical fibre (2).

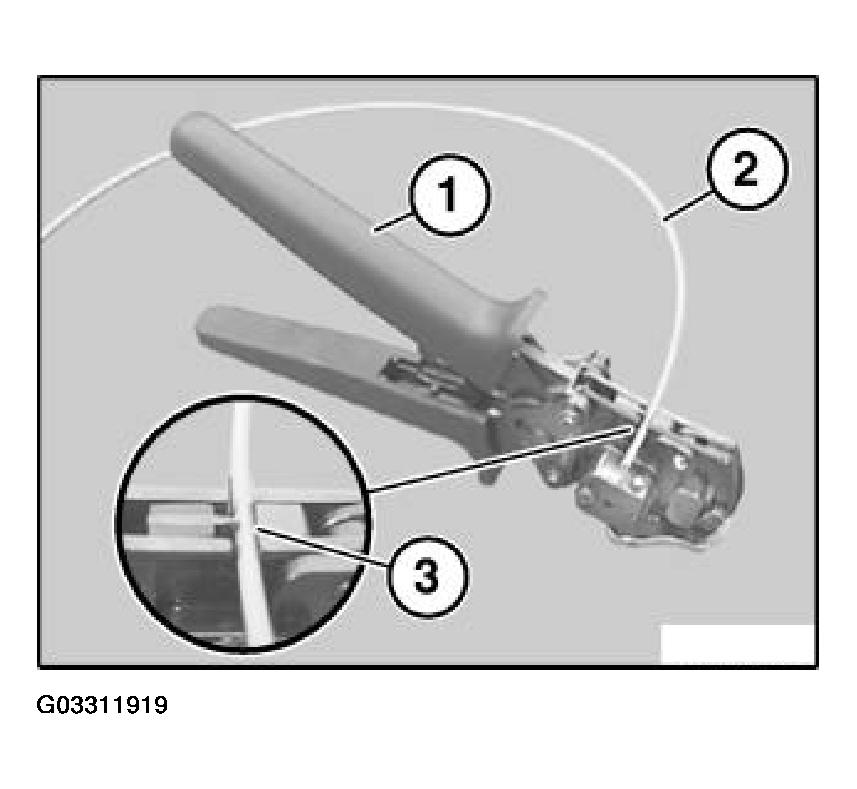

Fig 1: Cutting Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.
