Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 13 3 063 or 13 6 051

Note: For pressure gauge 13 3 061 or BMW DIS for measuring fuel pressure at injection rail

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

Storage location: C16

SI number: 1 06 95 (963)

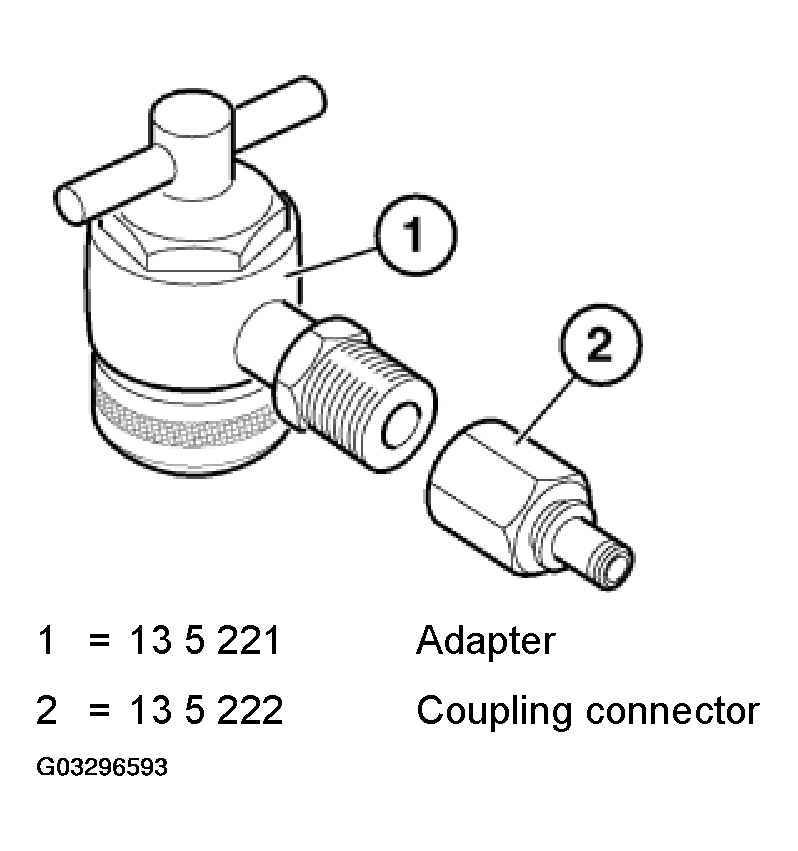

Fig 1: Identifying Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 13 5 220

Adapter

Consisting of:

1 = 13 5 221 Adapter

Note: Engine: M43, M44, M52, M62

2 = 13 5 222 Coupling connector

Note: For connecting DIS pressure sensor
