12 13... Normal oscillogram (M, S, W engines only)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

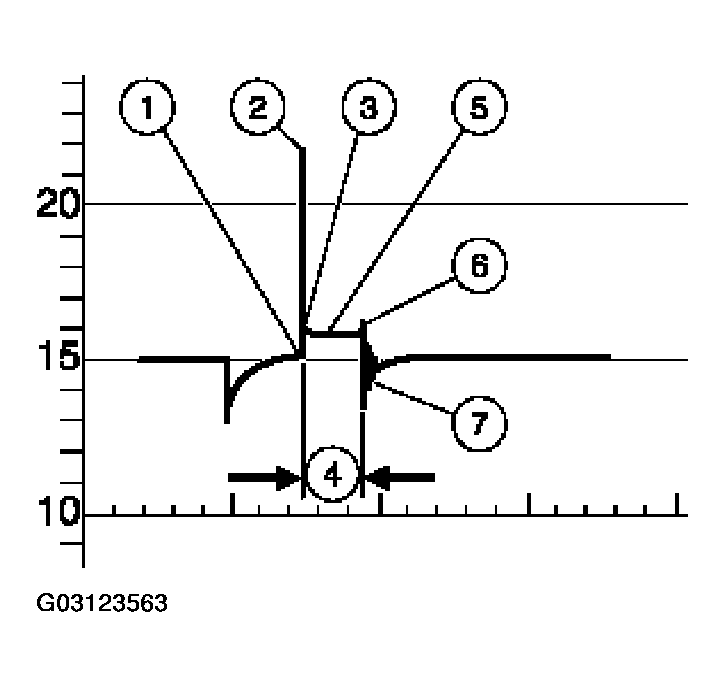

  1. start of ignition voltage peak
  2. Level of ignition voltage
  3. Level of combustion voltage
  4. Period of combustion
  5. Combustion curve characteristics
  6. Start of decay process
  7. Termination oscillations
    Fig 1: Secondary Voltage Patterns (Normal Oscillogram)
    G03123563Courtesy of BMW OF NORTH AMERICA, INC.

Secondary voltage patterns, beside one another:

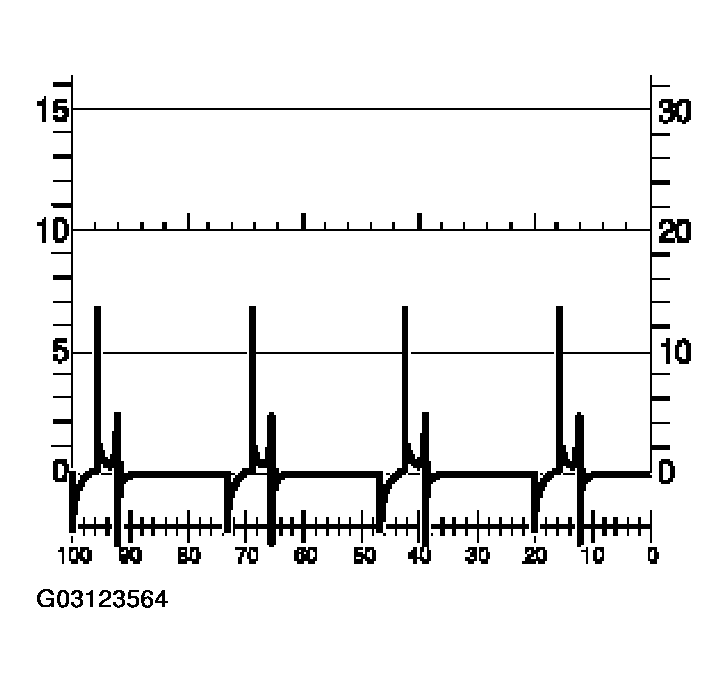

Evaluation of ignition voltage peaks at idle speed (this example shows an engine with 4 cylinders).

NOTE: The display of ignition voltage spikes is approx. 20-25% lower than the real value.
The uniformity of all cylinders to each other is more important than the height of ignition voltage peaks. Differences of 3000... 4000 V are permitted.
Fig 2: Secondary Voltage Patterns (Idle Speed)
G03123564Courtesy of BMW OF NORTH AMERICA, INC.

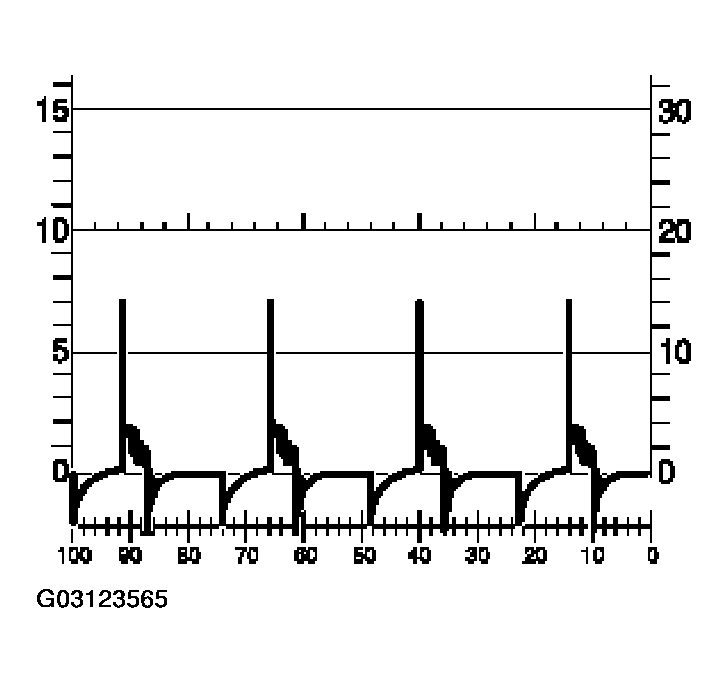

Evaluation of ignition voltage peaks at increased speed of approx. 2000 RPM (this example shows an engine with 4 cylinders).

Fig 3: Secondary Voltage Patterns (2000 RPM)
G03123565Courtesy of BMW OF NORTH AMERICA, INC.

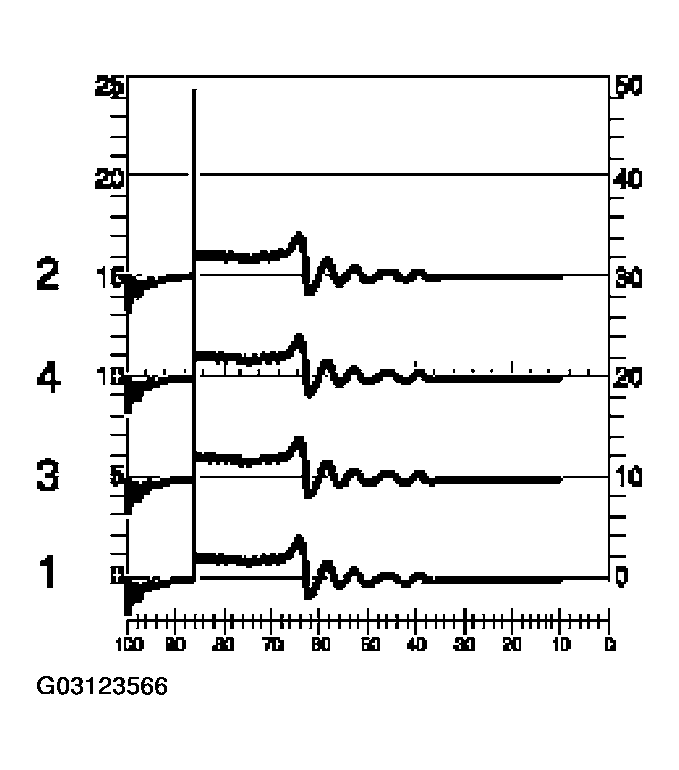

Secondary voltage diagrams, superimposed:

Evaluation of combustion characteristics curve and decay characteristics at idle speed (this example shows a 4-cylinder engine).

Fig 4: Secondary Voltage Patterns (Idle Speed)
G03123566Courtesy of BMW OF NORTH AMERICA, INC.

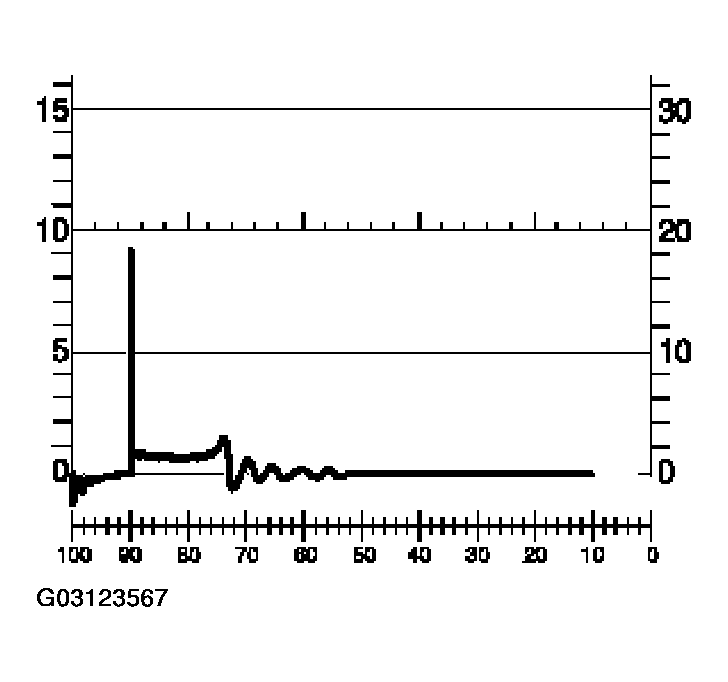

Secondary voltage diagrams, consecutive:

NOTE: Only the major differences in the ignition voltage patterns are revealed by this method of comparison.
The identified fault must be allocated to the relevant cylinder using the secondary voltage representation forms next to/on top of each other.
Fig 5: Secondary Voltage Diagrams, Consecutive
G03123567Courtesy of BMW OF NORTH AMERICA, INC.
