13 62 531 Replacing coolant temperature sensor (M52TU, M54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Installation location:

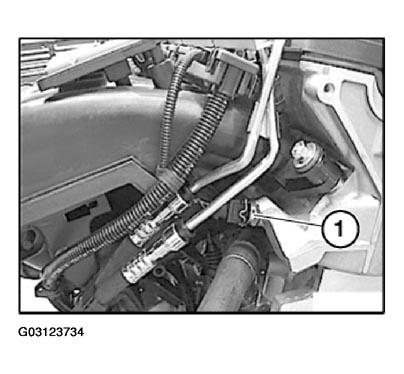

Coolant temperature sensor (1) is fitted below intake air manifold in cylinder head of cylinder 6.

Remove intake air manifold. See 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M54)

Fig 1: Removing Intake Air Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unscrew temperature sensor.

Installation:

Tightening torque, refer to 13 62 2AZ in FUEL SYSTEM - TIGHTENING TORQUES - M54, S54 or FUEL SYSTEM - TIGHTENING TORQUES - M56 .

Check coolant level, top up coolant if necessary.

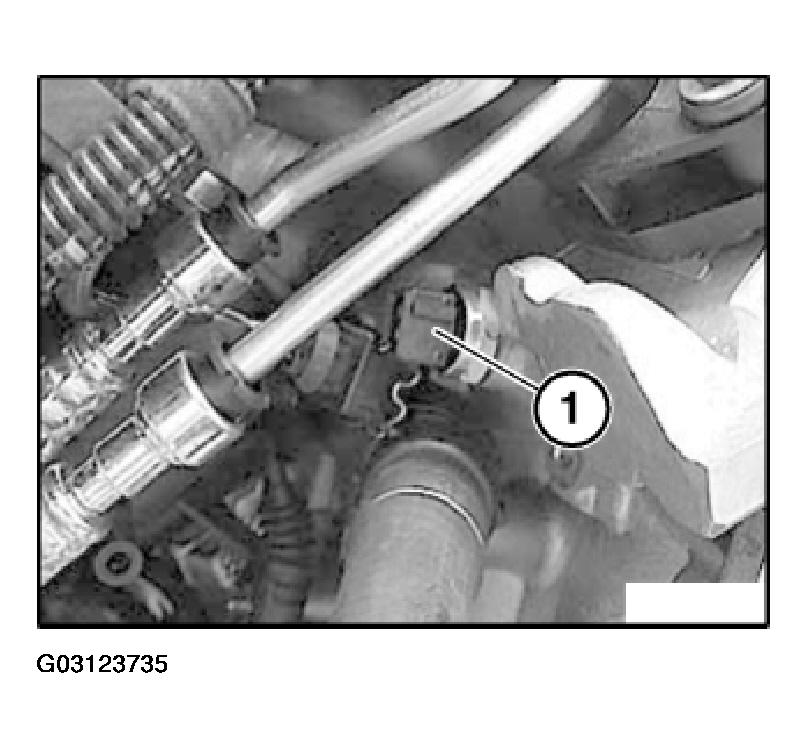

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Then clear fault memory.
