13 62 560 Removing and installing/replacing air-mass flow sensor (M54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Unlock retainers (1) on intake filter housing.

Unlock plug (2) and detach from air-mass flow sensor.

Release hose clip (3).

Detach intake hose (4) from air-mass flow sensor.

Remove air-mass flow sensor.

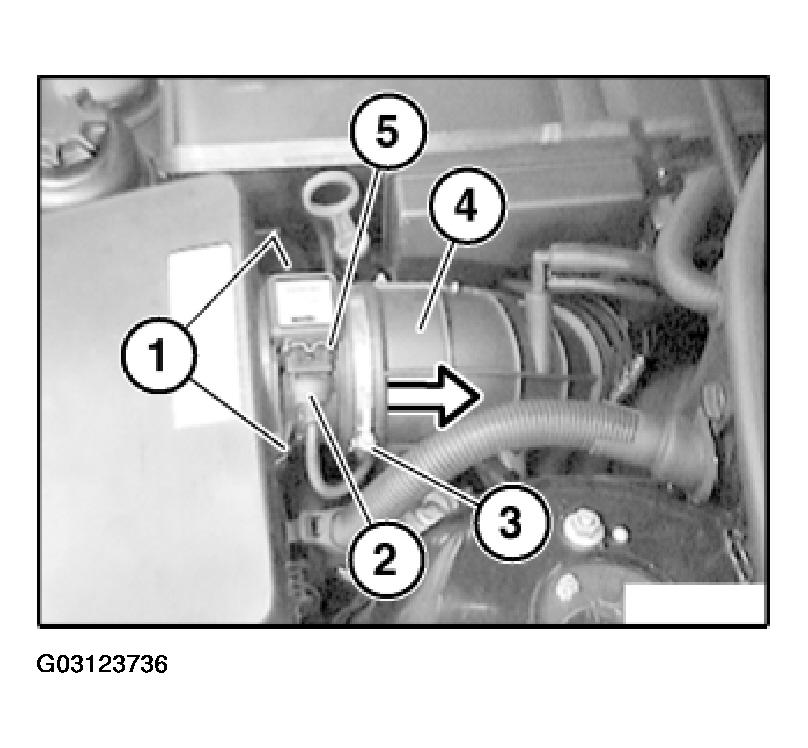

Fig 1: Detaching Intake Hose From Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check seal (1) between air-mass flow sensor and intake filter housing for damage; replace if damaged.

To facilitate joint between air cleaner and throttle assembly, coat gasket with acid-free grease.

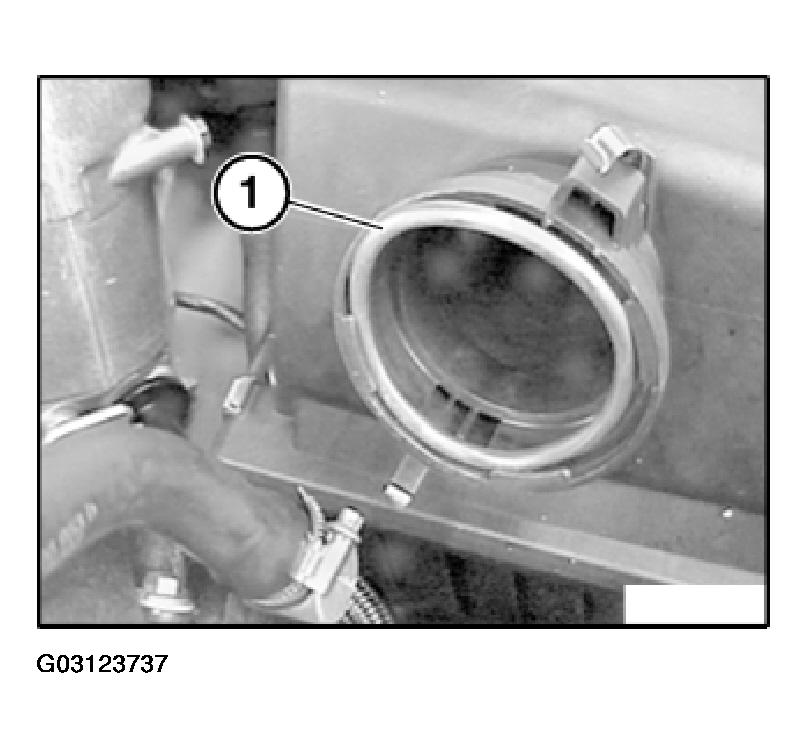

Fig 2: Checking Seal Between Air-Mass Flow Sensor & Intake Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Only reinstall mass air flow sensor with undamaged lattice frame.

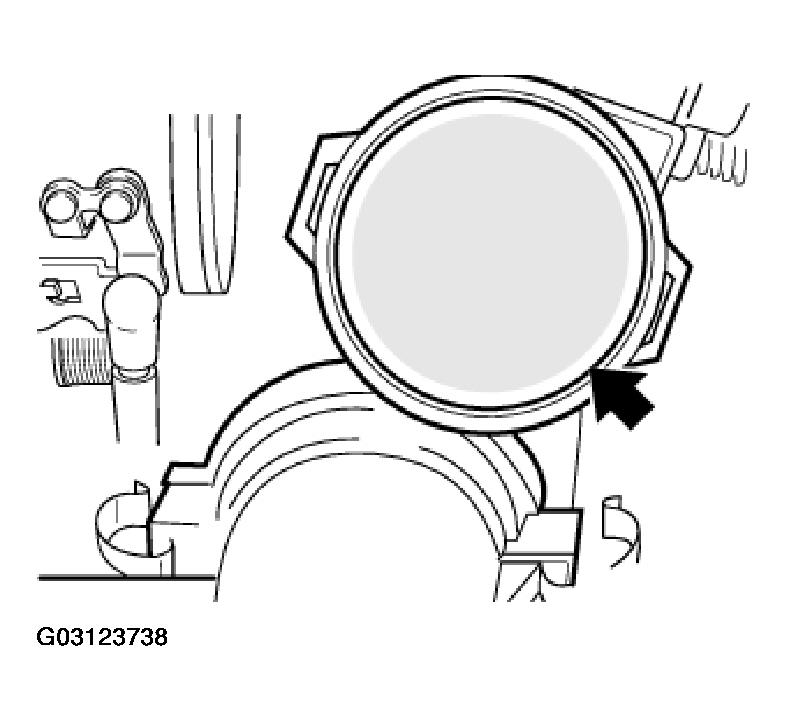

Fig 3: Reinstalling Mass Air Flow Sensor With Undamaged Lattice Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control module.
Check stored fault messages.
Rectify faults.
Then clear fault memory.
