Steering Column: Installation

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

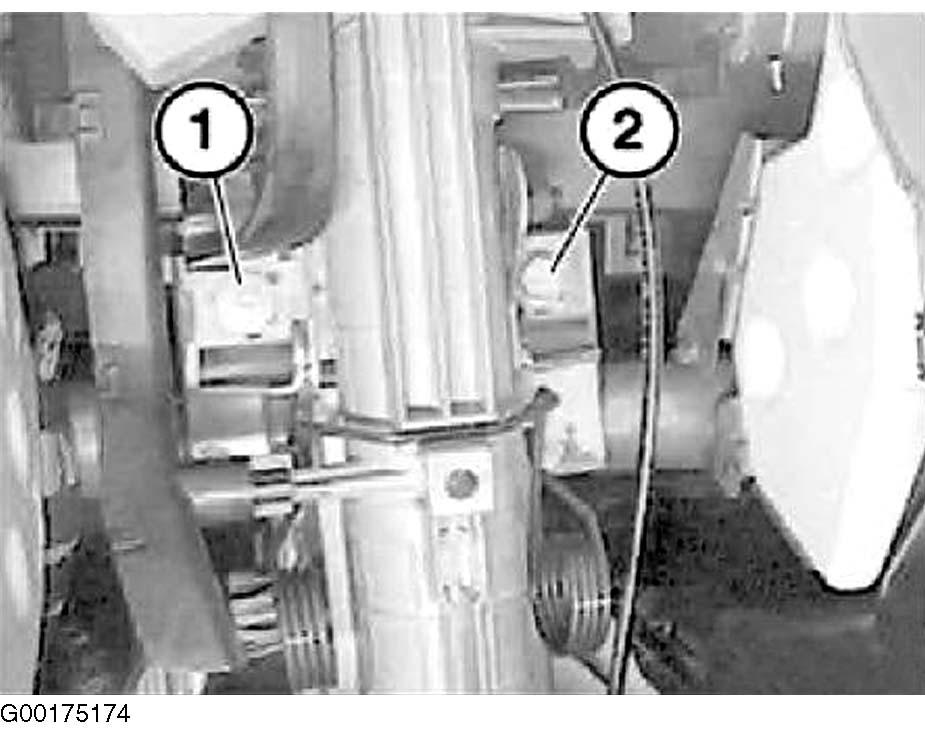

  1. To install, reverse removal procedure. Tighten down new shear screw until screw head shears off. See Figure.

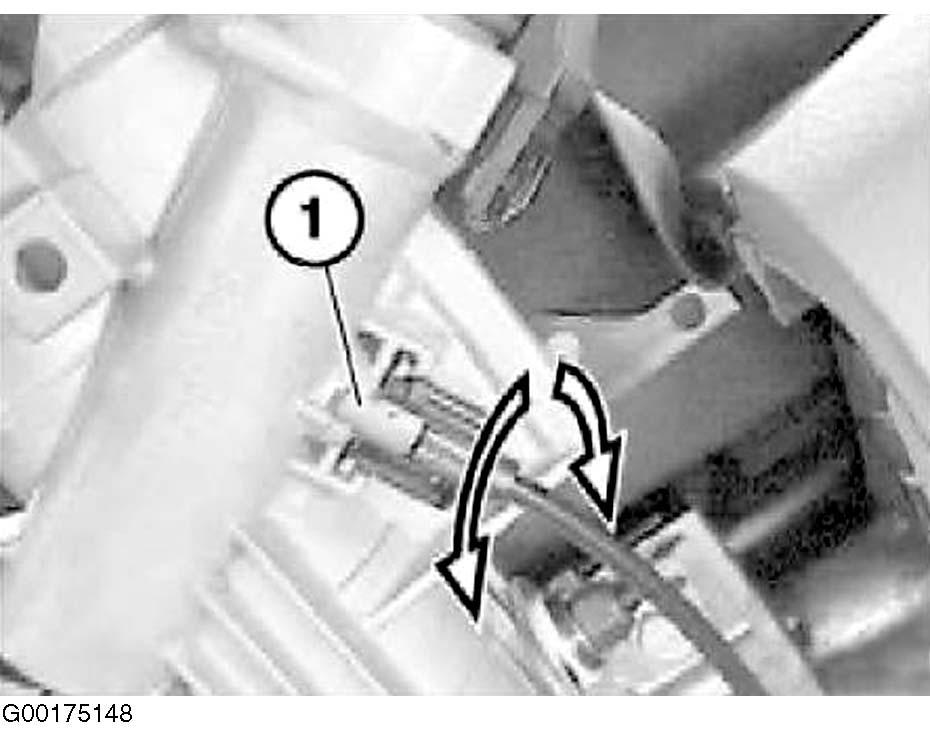

  2. When installing interlock cable, lock (1) must snap into place. See Figure.
  3. After installation, carry out mechanical (locking cylinder, steering lock, interlock) and electrical (ignition, radio, etc.) function checks.
