12 14 521 Replacing pulse generator on crankshaft (M54/M56)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition

IMPORTANT: The section Removing and installing reinforcement plate on front axle support contains important installation instructions.

If fitted:
Remove vacuum reservoir for exhaust flap.

NOTE: Installation location of pulse generator for crankshaft is underneath starter motor.

NOTE: For a better overview, this work step is shown on an engine that has been removed.

Unlock plug (1) and remove.

Unscrew bolt (2).

Remove pulse generator (3).

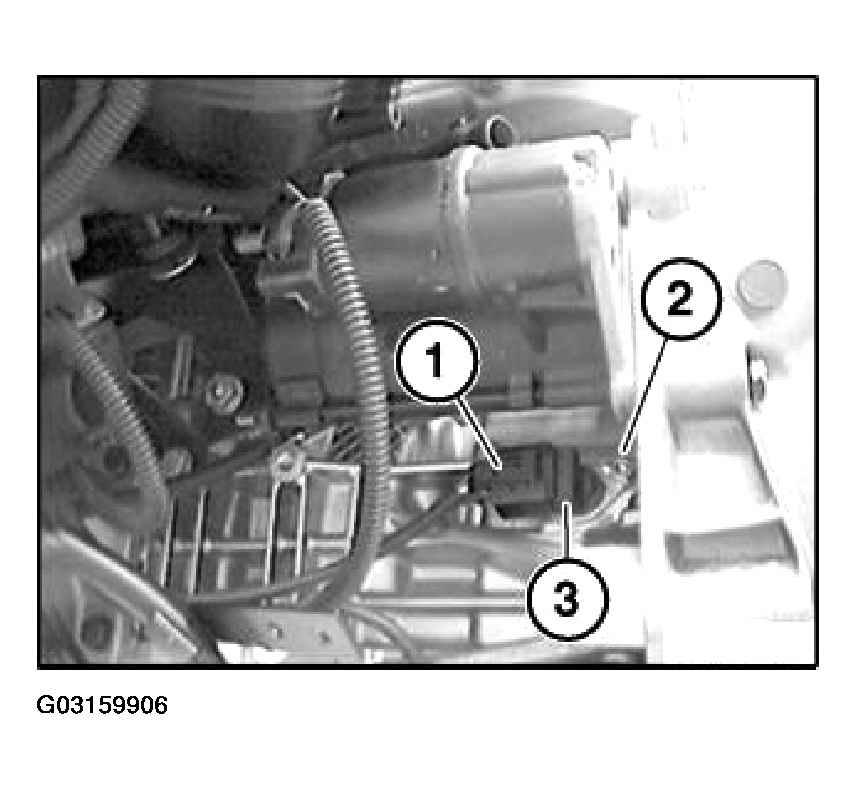

Fig 1: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Now clear the fault memory.
