61 13... Antenna elbow plug on radio receiver

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Cut off faulty antenna angle plug directly after strain relief.

Carefully and with precision, strip insulation from antenna cable as illustrated (lengths given in mm).

Brush shield (copper braid) towards rear.

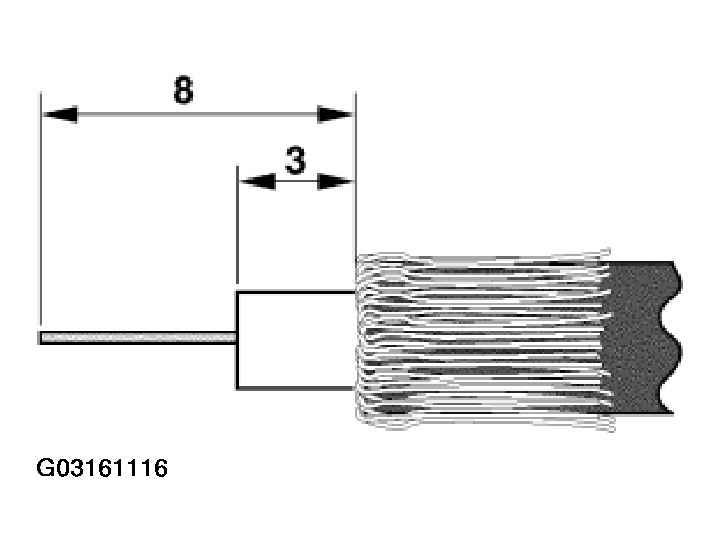

Fig 1: Identifying Length Of Insulation For Antenna Cable

G03161116

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There must be no more copper wire protruding in the direction of the inner conductor on the inner conductor insulation (risk of short circuits).

Create a loop on inner conductor.

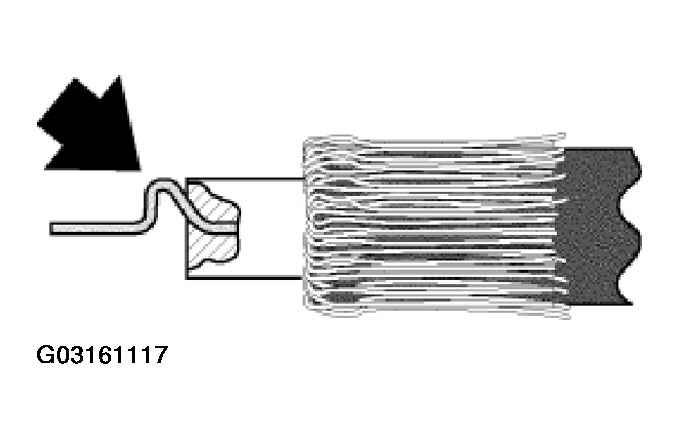

Fig 2: Identifying Loop On Inner Conductor

G03161117

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cover soldering area extensively in center console all round radio aperture.

Avoid blobs of melted solder in inside area.

Tin-plate center connection on antenna angle plug and stripped inner conductor.

Solder inner conductor on center connection with a small soldering iron (max. 50 watts) and matching soldering tip (1).

Gently push insulation forward to soldering point and pay attention to correct position of loop.

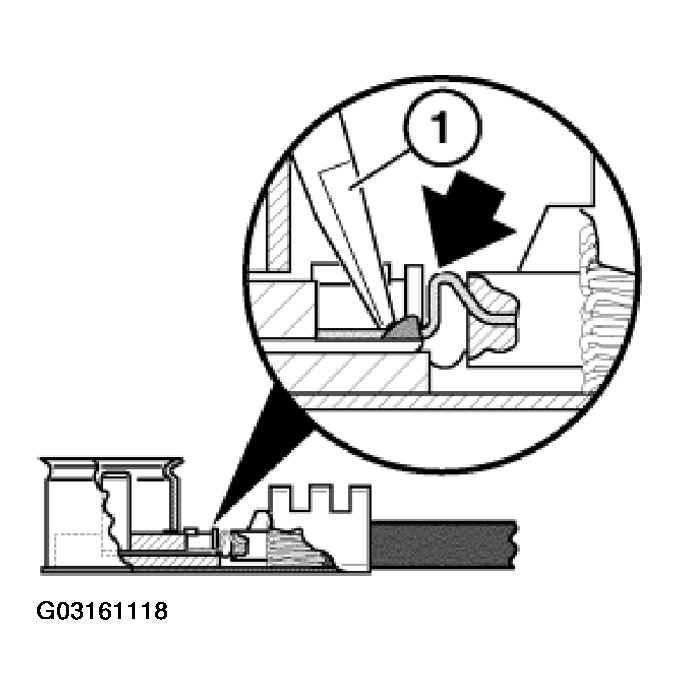

Fig 3: Soldering Inner Conductor On Center Connection

G03161118

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The loop must not under any circumstances come into contact with the metal parts of the antenna plug.

Special tool 61 9 041 (hand pliers) in conjunction with special tool 61 9 044 (matrix) is used to crimp antenna angle plug.

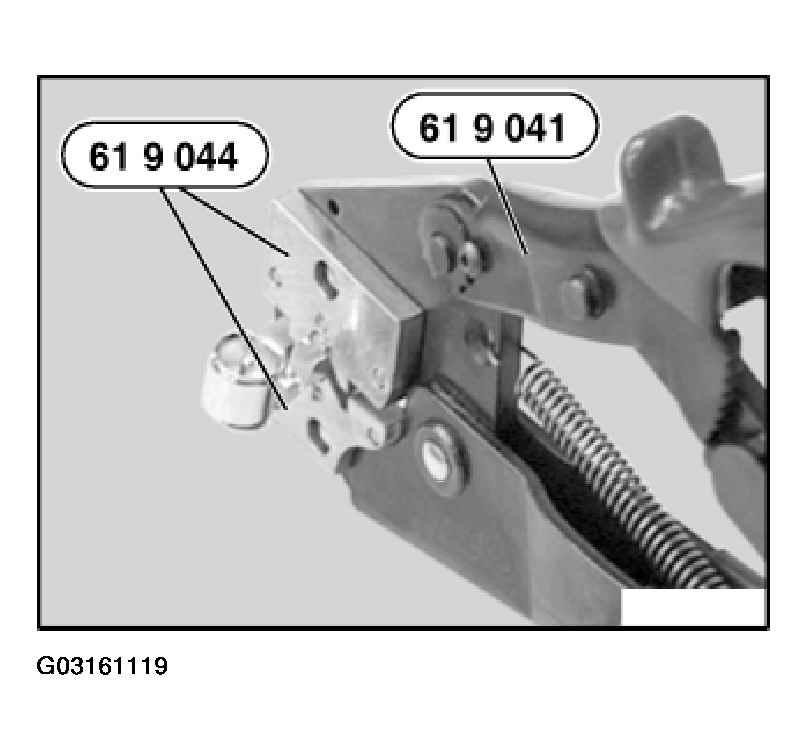

Fig 4: Crimping Antenna Angle Plug

G03161119

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock special tool 61 9 041:

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow.

OR:

Compress handles as far as they will go, tool unlocks automatically.

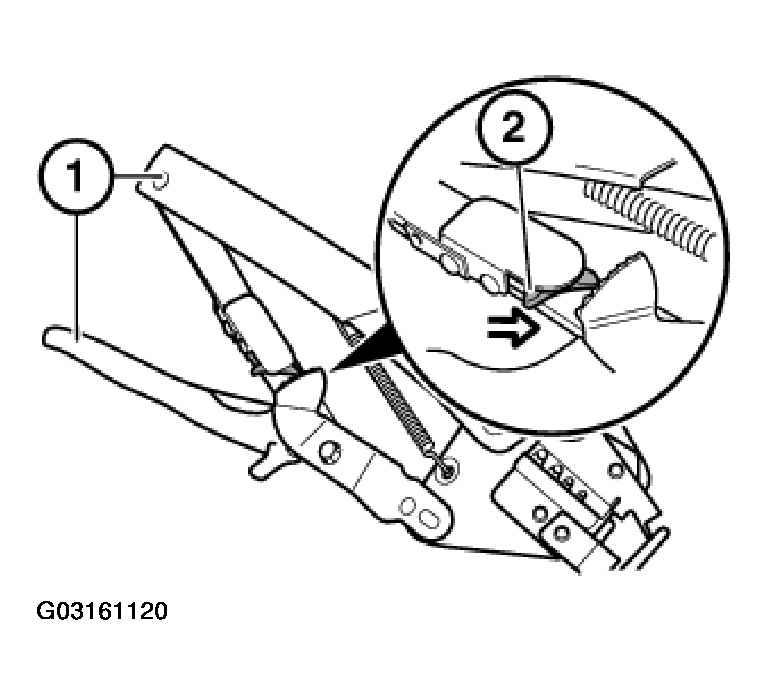

Fig 5: Unlocking Crimping Lever

G03161120

Courtesy of BMW OF NORTH AMERICA, INC.

Place antenna angle plug with cable guide and strain relief in matrix (1).

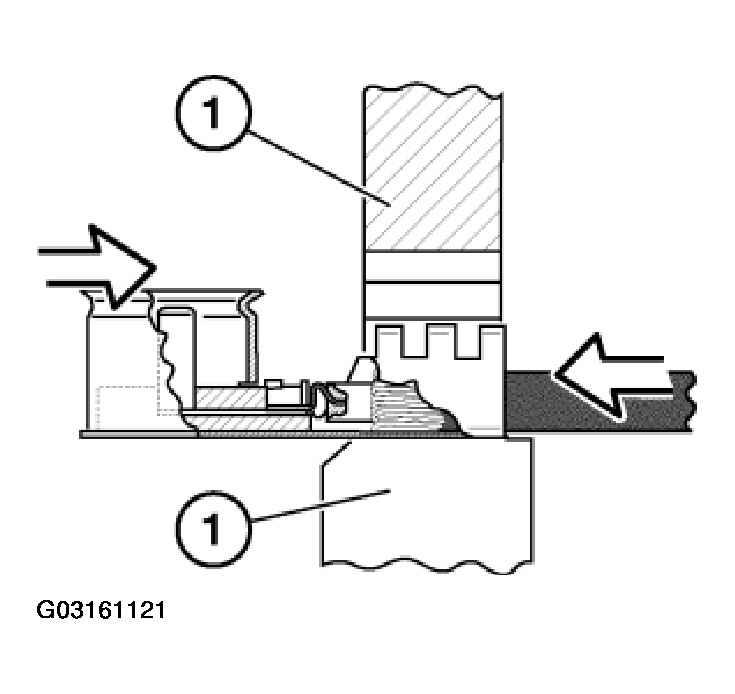

Fig 6: Placing Antenna Angle Plug In Matrix

G03161121

Courtesy of BMW OF NORTH AMERICA, INC.

Compress special tool 61 9 041 as far as it will go.

Special tool 61 9 041 unlocks automatically.

Remove antenna angle plug with antenna cable from special tool 61 9 044.

Fig 7: Removing Antenna Angle Plug From Special Tool

G03161122

Courtesy of BMW OF NORTH AMERICA, INC.
