Removing Center Console Switch Unit

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out switch unit (1) with special tool 00 9 340 and withdraw in direction of arrow.

Disconnect plug connection behind it and remove switch unit(1).

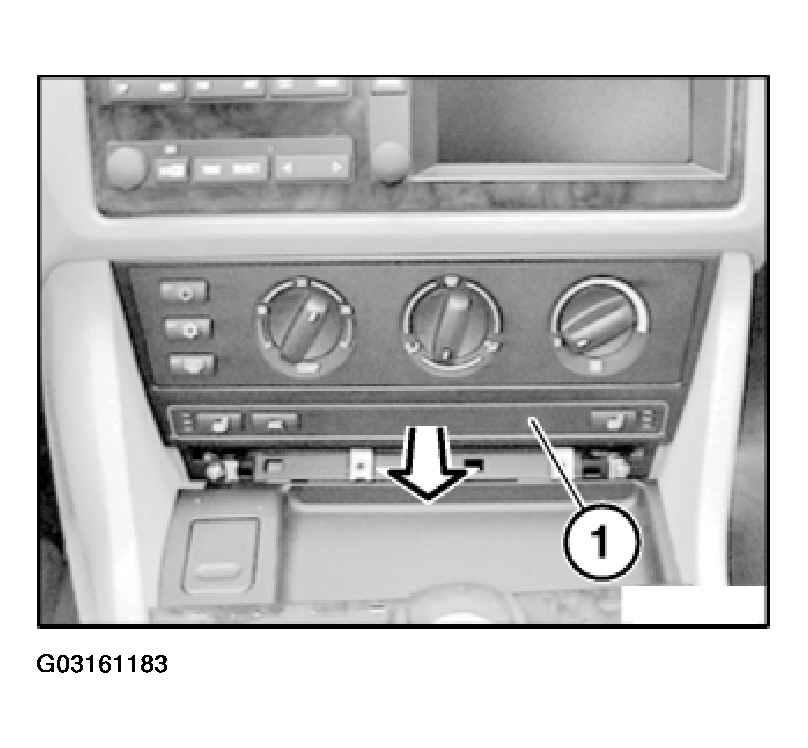

Fig 1: Removing Center Console Switch Unit
G03161183Courtesy of BMW OF NORTH AMERICA, INC.
