61 31 115 Replacing rocker switch for side-window operation

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Pass a feeler gauge at arrowed positions (1 to 4) between door trim panel and toggle switch and press down retaining clips.

Raise toggle switch at relevant position until retaining clip slides out of door trim panel.

Pull out toggle switch and disconnect plug connection.

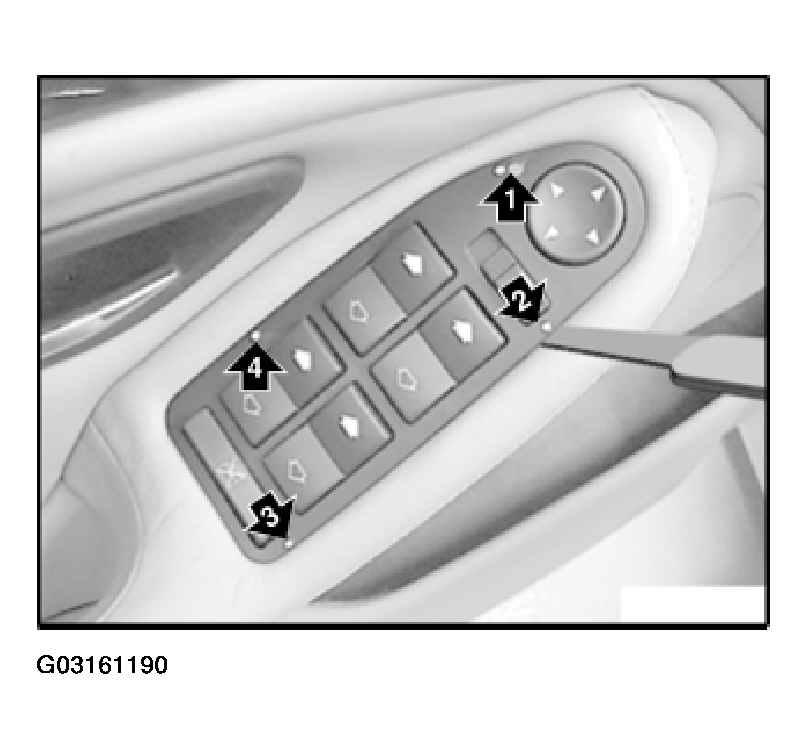

Fig 1: Removing Power Window Switch

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Retaining clips (1) may get caught up under door trim panel when toggle switch is levered out.

If necessary, remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

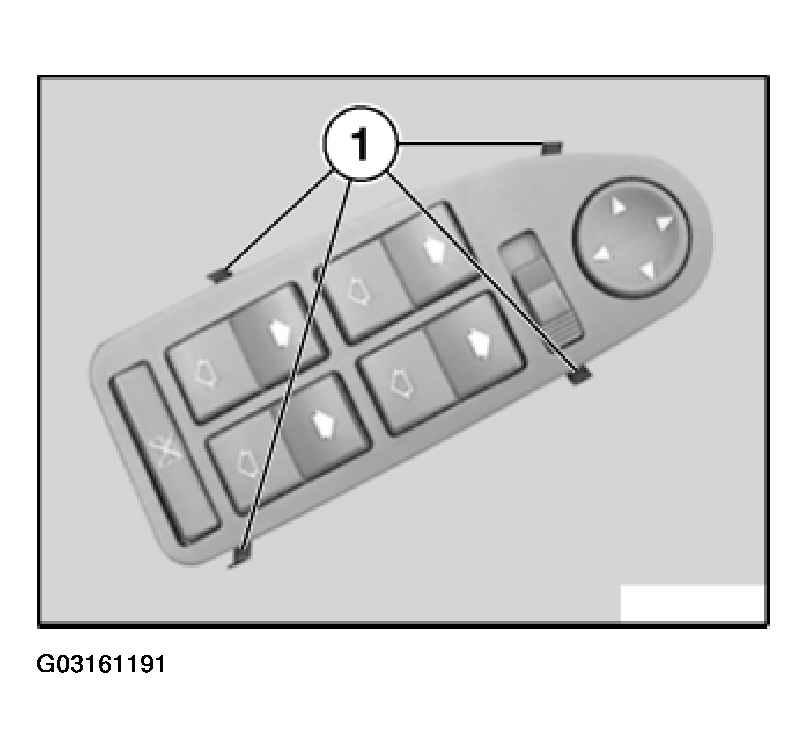

Fig 2: Identifying Power Window Switch Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
