Step 4 (Selecting the vehicle and connecting)

Select the vehicle to be connected from the list. Then press < Connect >.

NOTE: A connection can only be established from the IMIB to the vehicle, not the other way around.

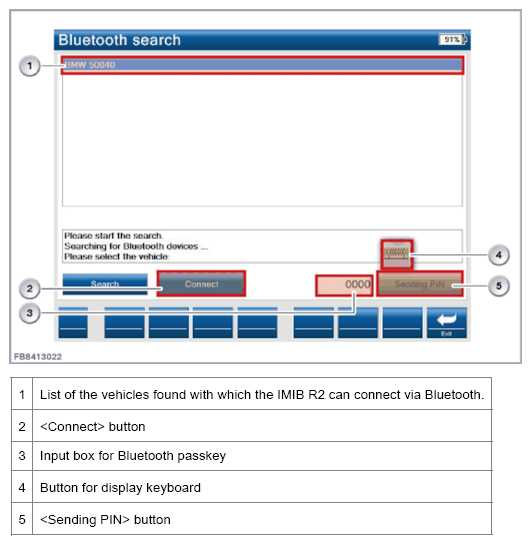

Fig 1: Display - Bluetooth Search Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Enter Bluetooth passkey on the IMIB. Example: 9876

To enter the Bluetooth passkey on the IMIB, activate the input box on the display. Enter the Bluetooth passkey using the input keys on the left or the IMIB display keyboard.

Press < Sending PIN > to confirm.

Enter the Bluetooth passkey in the vehicle and confirm with < OK >. The Bluetooth passkey must be entered and confirmed in the vehicle within 30 seconds.

NOTE: The Bluetooth passkey must not contain more than 4 digits for the test. (example on a F01 with Combox.)

Fig 2: Display - Bluetooth Passkey Vehicle Screen

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Vehicle E46, E83, E53, E85, E86, E65, E66, E67, E68 and RR1, RR2, RR3 (depending on equipment) are equipped with a fixed Bluetooth passkey. For the vehicles the entry of the Bluetooth passkey in the vehicle is dispensed with. The Bluetooth passkey to be used is found in the vehicle documentation or on the label on the control unit. This can additionally be read out via the control unit functions of the telephone control unit.
