Except M5 & M6 With Sequential Manual Transmission

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2010 BMW 650i, 2010 BMW 550i, and 2010 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the tire pressure of all wheels to specification.
  2. On iDrive Control Center, select "VEHICLE SETTINGS" or "VEHICLE/ TIRES", then press the controller.
  3. Select "FTM" and press the controller. The initialization menu appears. See Fig 1.
  4. Start the engine, but do not begin to drive.
  5. Select "SET TIRE PRESSURE" or "RESET" and press the controller.
  6. Drive vehicle. The message "INITIALIZING..." or "RESETTING FTM..." will be displayed.
    NOTE: It may take up to 10 minutes before the TPM system can detect and report a flat tire.
  7. The initialization is completed during driving. Then the message "STATUS: ACTIVE" appears on the Control Display. See Fig 1.

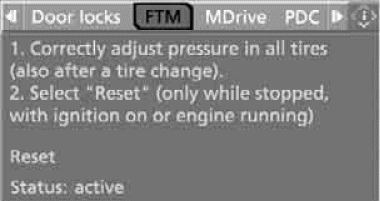

Fig 1: Identifying Flat Tire Monitor (FTM) Initialization Message
G00507130Courtesy of BMW OF NORTH AMERICA, INC.
