Front - M5 & 540i
WARNING: This page is about a different car, the 2003 BMW 540i, 2003 BMW 530i, and 2003 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

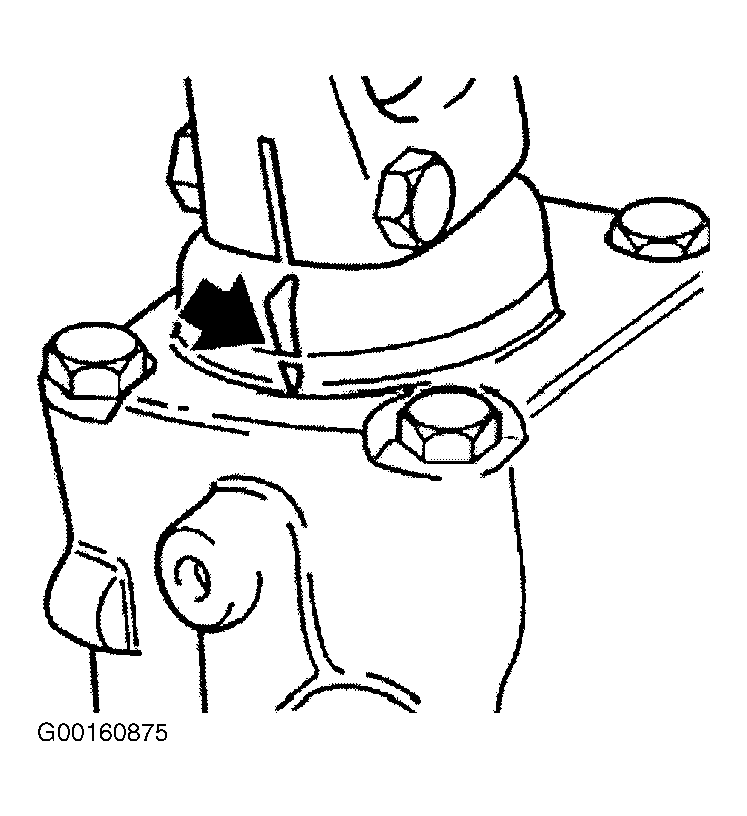

- Move steering wheel gear into straight ahead setting Marks on housing and steering shaft must line up. See Fig 1.
- Loosen clamping screws on tie rods. Adjust toe-in of wheel by turning the tie rod precisely to specification. See Fig 2. For alignment specification, see WHEEL ALIGNMENT SPECIFICATIONS .
- Ensure that the ball joints are not twisted and tighten clamping screws to specification. See TORQUE SPECIFICATIONS .
