31.... Layout Of Spring Strut Shock Absorber
WARNING:
This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

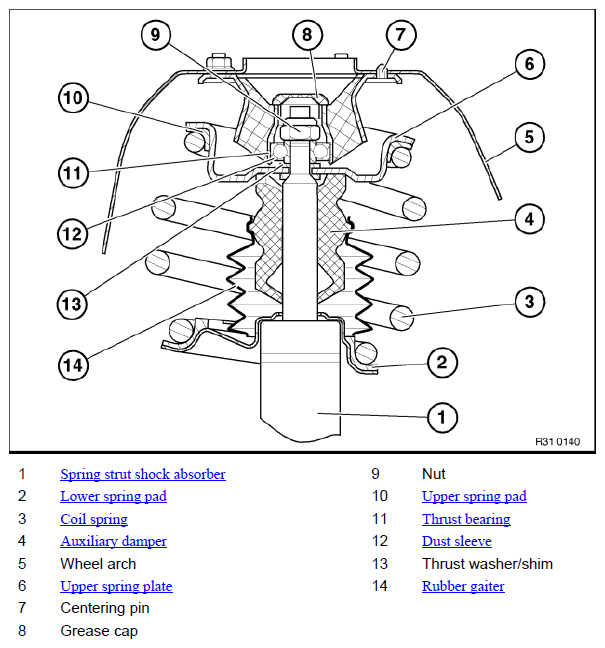

Fig 1: Identifying Layout Of Spring Strut Shock Absorber
Courtesy of BMW OF NORTH AMERICA, INC.
