86 10... Removing overrunning equipment/maintaining or replacing guide bush/installing overrunning equipment: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Use new self-locking nuts.

Tightening Torque,

refer to 86 10 10AZ, see 86 10 PLATFORM .

Fig 1: Identifying Round Head Screws And Running Board

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook tension spring (1) from tension spring mount (2).

Fig 2: Unhook Tension Spring From Tension Spring Mount

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Once nut (1) of pull rod (2) has been released, do not move handbrake lever. Handbrake lever can flick upwards.

Release screw (1) on pull rod (2) and remove hexagon nut.

Slide brake compensator (3) towards rear.

Use new self-locking nut.

Fig 1: Identifying Screw On Pull Rod And Hexagon Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on jockey wheel mount and remove.

Release wiring harness mount (2) and remove. Reinstall screw and tighten until hand-tight.

Tightening Torque for jockey wheel mount (1),

refer to 86 10 11AZ, see 86 10 PLATFORM .

Tightening Torque for wiring harness mount (2),

refer to 86 10 12AZ, see 86 10 PLATFORM .

Fig 1: Identifying Screws On Jockey Wheel Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw on socket holder (1) and remove. Cut through strap (2) and lay wiring harness to one side. Pull gaiter (3) in direction of arrow.

Use new self-locking nut.

Tightening Torque,

refer to 86 10 13AZ, see 86 10 PLATFORM .

Fig 1: Identifying Screw On Socket Holder And Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective caps (1).

Fig 2: Identifying Protective Caps And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove.

Use new self-locking nuts.

Tightening Torque,

refer to 86 10 14AZ, see 86 10 PLATFORM .

Fig 1: Identifying Protective Caps And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt top reversing housing (1) in direction of arrow towards rear.

Slide out top reversing housing (1) and bottom reversing housing with handbrake lever unit (2) in direction of arrow towards rear.

Fig 2: Tilting Top Reversing Housing In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holder (1) towards bottom.

Fig 3: Removing Holder Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Pull drawbar member (1) in direction of arrow and pull out

overrunning equipment (2) in direction of arrow towards front.

Fig 4: Pulling Drawbar Member In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spacer tubes (1) and threaded pins (2) from guide bush (3).

Fig 5: Remove Spacer Tubes And Threaded Pins From Guide Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Press pins (1) inwards. Detach counter support (2) and guide bush (3).

Secure counter support (2) with new clamping sleeves to tow tube (4).

Fig 1: Identifying Pins, Counter Support And Guide Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Insert spacer tubes (1) and threaded pins (2) in guide bush (3).

Make sure spacer tubes (1) are correctly seated in guide bush (3).

Fig 2: Inserting Spacer Tubes And Pins In Guide Bush

Courtesy of BMW OF NORTH AMERICA, INC.

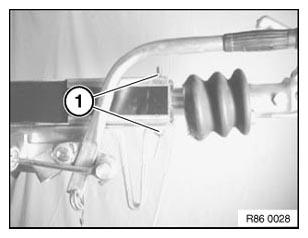

Using a screwdriver, link spacer tubes (1) and shock absorber located in tow tube. This ensures that the shock absorber remains in the correct installation position. Pull drawbar member (2) in direction of arrow and push in overrunning equipment (3) in direction of arrow towards rear.
