61 35 080 Removing and installing/replacing control unit/module for left or right seat adjustment

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

CLAMP OFF BATTERY NEGATIVE LEAD .
Remove both battery earth leads at F03.

Unclip cover in upper rail at front (1) in direction of arrow and remove.

Fig 1: Removing Upper Rail Front Cover

Courtesy of BMW OF NORTH AMERICA, INC.

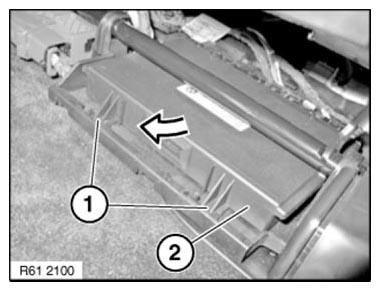

Unlock latch mechanisms (1).

Feed out control unit for seat adjustment (2) in direction of arrow.

Fig 2: Removing Control Unit For Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove control unit for seat adjustment (2).

Fig 3: Identifying Control Unit For Seat Adjustment And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure mounts (1) and retaining tabs (2) of control unit for seat adjustment (3) are correctly seated.

Fig 4: Identifying Control Unit For Seat Adjustment, Mounts And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle PROGRAMMING/ENCODING .
