61 31 231 Removing and installing/renewing steering wheel module control unit

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

Remove airbag unit . See 32 34 030 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT (SPORT STEERING WHEEL) or 32 34 020 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT .

NOTE: Steering wheel cover is shown removed for purposes of clarity.

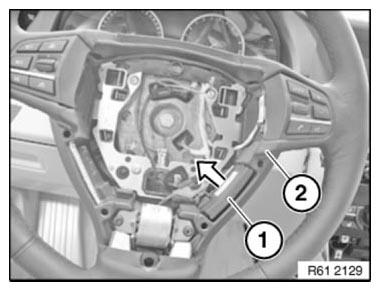

Remove control unit for steering wheel module (1) from steering wheel (2) in direction of arrow.

Fig 1: Removing Steering Wheel Module Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

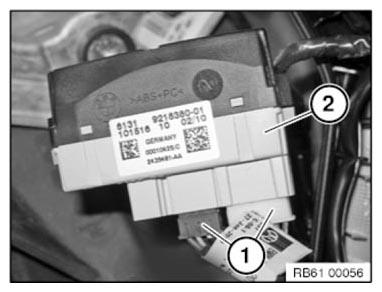

Disconnect plug connection (1).

Remove steering wheel electronics control unit (2).

Installation note:

Make sure electronic steering wheel module (2) is fitted correctly.

Fig 2: Identifying Electronic Steering Wheel Module And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
