37 11 032 Replacing front left or right spring strut shock absorber: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Prior to each use of special tool 31 3 340 , it is essential to read the associated Owner's Handbook fully!
All the safety precautions and instructions contained in the Owner's Handbook must be strictly observed!
Failure to observe these safety precautions and instructions increases the risk of serious physical injury, damage to your health and damage to property and equipment!

IMPORTANT:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
These special tools are intended solely for the purpose of tightening and relieving cylindrical and tapered suspension springs.
Keep special tools dry, clean and (down to the spindle) free from grease.
Impact screwdrivers are prohibited!
Do not compress coil spring to full extent.

Necessary preliminary tasks:

Remove FRONT SPRING STRUT

Removing:

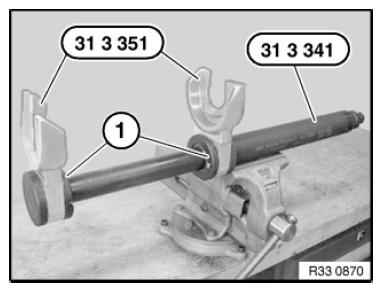

Clamp special tool 31 3 341 in vice.

Fit special tools 31 3 351 from above on special tool 31 3 341 until retaining bolts (1) can be felt and heard to snap into place.

Fig 1: Fitting Special Tools (31 3 351) On Special Tool (31 3 341)

Courtesy of BMW OF NORTH AMERICA, INC.

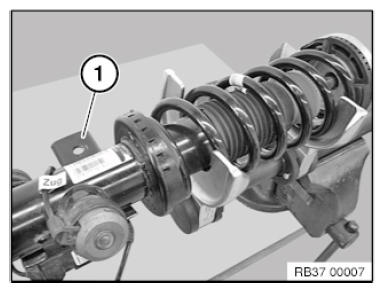

Insert spring strut into spring tensioner in such a way that anti-roll bar link fixture (1) is horizontally positioned to left or right.

Fig 2: Identifying Anti-Roll Bar Link Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Coils of coil spring must be located completely in recesses of special tools 31 3 351 !

Compress coil spring until stress on piston rod is relieved.

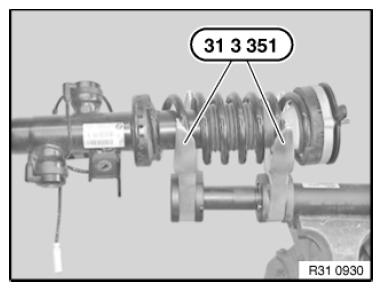

Fig 3: Compressing Coil Spring Using Special Tool (31 3 351)

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut with special tool 33 0 040 .

Check support bearing and spring pad for damage and replace if necessary.

Remove shock absorber, auxiliary damper, protective tube and spring pad from tensioned coil spring, examine and replace if necessary.

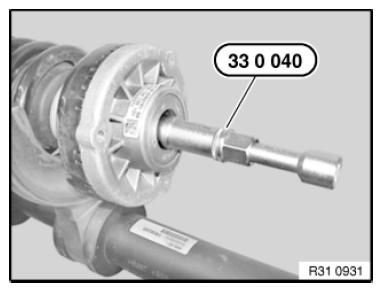

Fig 4: Releasing Spring Strut Shock Absorber Nut Using Special Tool (33 0 040)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When mounting, spring strut and support bearing must aligned using special tool 83 30 2 210 778.
The following procedure must be followed.

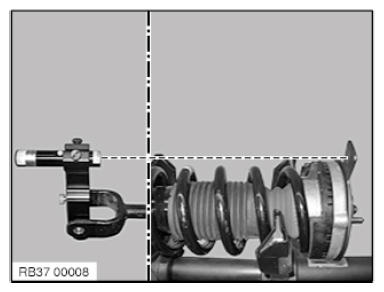

Fig 5: Aligning Spring Strut And Support Bearing Using Special Tool (83 30 2 210 778)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert shock absorber in tensioned coil spring.

Slide auxiliary damper, protective tube and spring pad onto piston rod.

IMPORTANT: Lower end of coil spring must rest against spring pad (1).

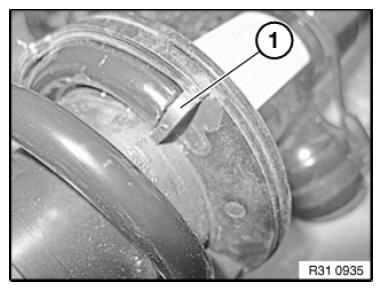

Fig 6: Identifying Spring Pad

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Fit support bearing and align with end of coil spring.

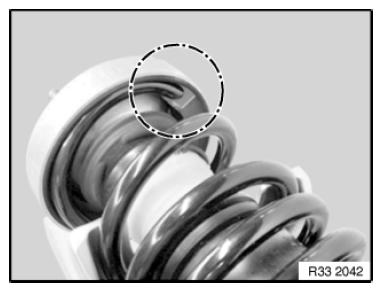

Fig 7: Identifying Alignment Position Of Support Bearing With End Of Coil Spring

Courtesy of BMW OF NORTH AMERICA, INC.

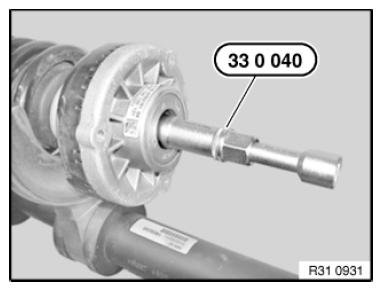

Use special tool 33 0 040 to attach support bearing.

Replace nut!

Tightening torque 31 31 2AZ .

Fig 8: Connecting Support Bearing Using Special Tool (33 0 040)

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury!
Adjusting device emits laser beam!
Do not look into the beam!
Laser class 2
To EN60825-1: 1994
P≤ 1 mW

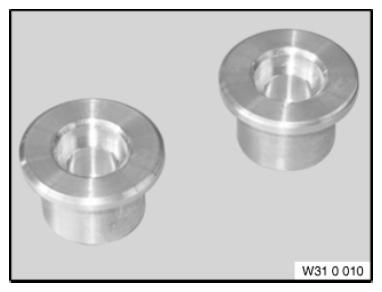

NOTE: On F03 vehicles, adapter sleeves 31 0 010 are to be used to enable fixing of special tool 83 30 2 210 778 on spring strut (damper eyelet)!

Fig 9: Identifying Spring Strut (Damper Eyelet)

Courtesy of BMW OF NORTH AMERICA, INC.

Align laser (1) with prism mirror (2)!

Mount laser (1) in damper eyelet
Mount prism mirror (2) vertically onto spring strut!
The prism mirror must be mounted on a clean, smooth surface. Do not mount prism mirror on label or weld beads!

Laser beam must face mirror!

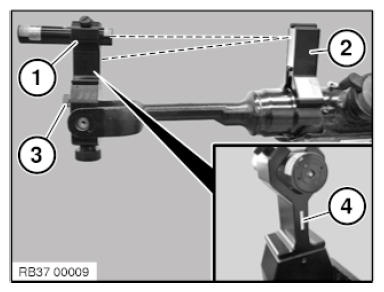

Fig 10: Aligning Laser With Prism Mirror
Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the laser with adjusting screw (3) in such a way that the laser beam is projected onto mark (4) via the mirror.
Remove prism mirror ->After this, the laser adjustment must not be changed at the adjusting screw (3)!

Align spring strut and support bearing with each other_

Mount gauge 83 30 2 210 783 on support bearing.

Right spring strut:

Vehicles built before 04/2010: Position mark (1) "RIGHT A" on arrow (2) on support bearing.

On vehicles from 04/2010: Position mark (1) "RIGHT B" on arrow (2) on support bearing.

Left spring strut:

Position mark (1) "LEFT" on arrow (2) on support bearing.

NOTE: Mark (1) "RIGHT" or "LEFT" must always be readable from above!

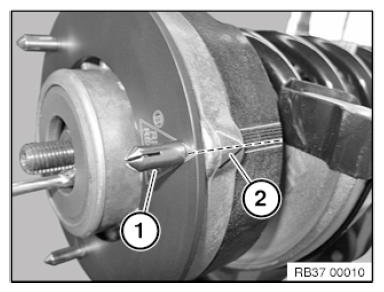

Fig 11: Identifying Alignment Position Of Spring Strut With Support Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Align spring strut with support bearing or with corresponding mark on gauge (1) using laser beam and relieve tension.

IMPORTANT: After the spring tension is relieved, the laser beam must point to the specified mark of gauge (1).
Failure to observe this requirement will result in substantial impairment of handling characteristics.

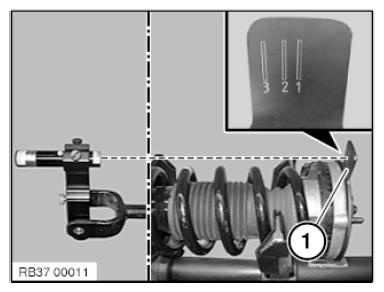

Fig 12: Identifying Alignment Position Of Support Bearing With Spring-Strut Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles built before 04/2010: Position laser beam on mark "3" of gauge.

On vehicles from 04/2010: Position laser beam on mark "2" of gauge.

Relieve spring tension.
