61 42 010 Removing and installing (replacing) battery charging module (complete with holder)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON RIGHT
Remove flap in right luggage compartment trim panel, only with F11.

Release clamps (1).

Remove cover (2) in direction of arrow.

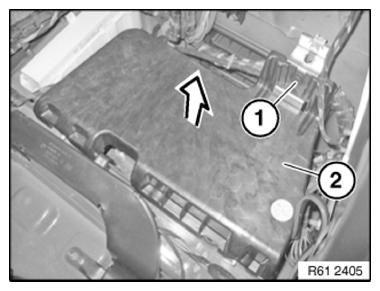

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Unfasten screws (2).

Remove holder with battery module (3).

Installation note:

Make sure holder with battery module (3) is correctly seated.

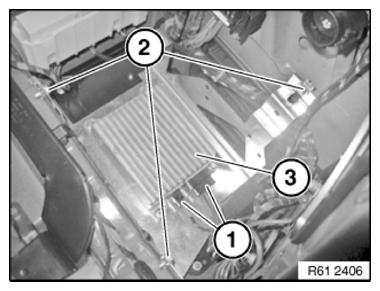

Fig 2: Identifying Battery Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release rivets (1) and remove battery module (2) from holder (3).

Installation note:

The rivets (1) must be renewed.

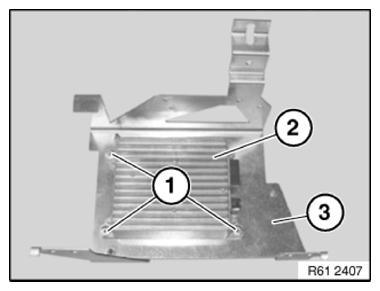

Fig 3: Identifying Battery Module, Holder And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
