61 31 079 Replacing switch for hazard warning system/central locking

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Version with sequential M transmission only:

Remove storage compartment trim, refer to 61 31 055 REMOVING AND INSTALLING/REPLACING SWITCH FOR SMG TRANSMISSION (PROGRAM SELECTOR SWITCH)

Version without sequential M transmission only:

Unclip gaiter (1) at side and force upwards over gear lever knob (2).

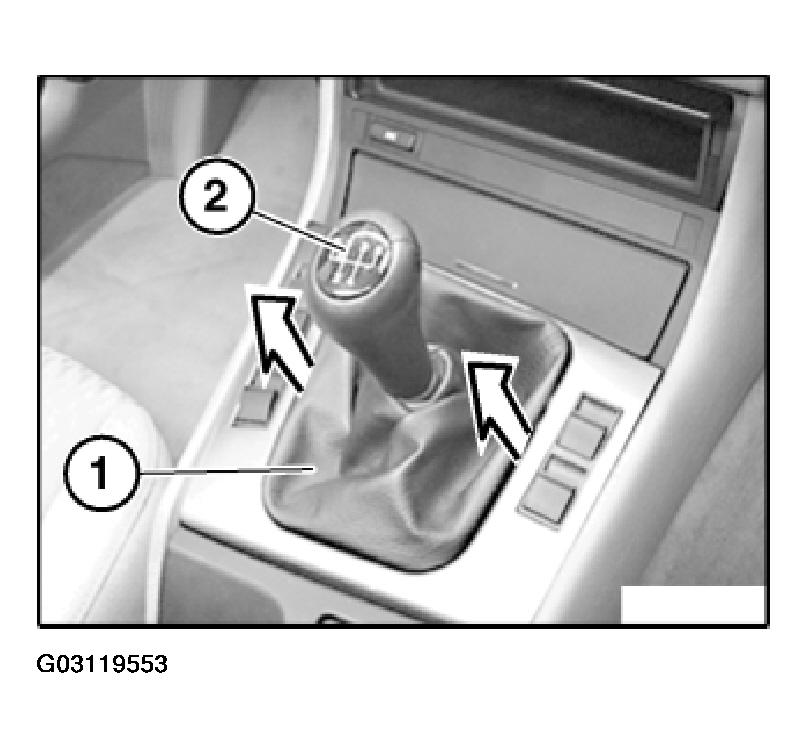

Fig 1: Removing Gaiter At Side

G03119553

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Release screws (1).

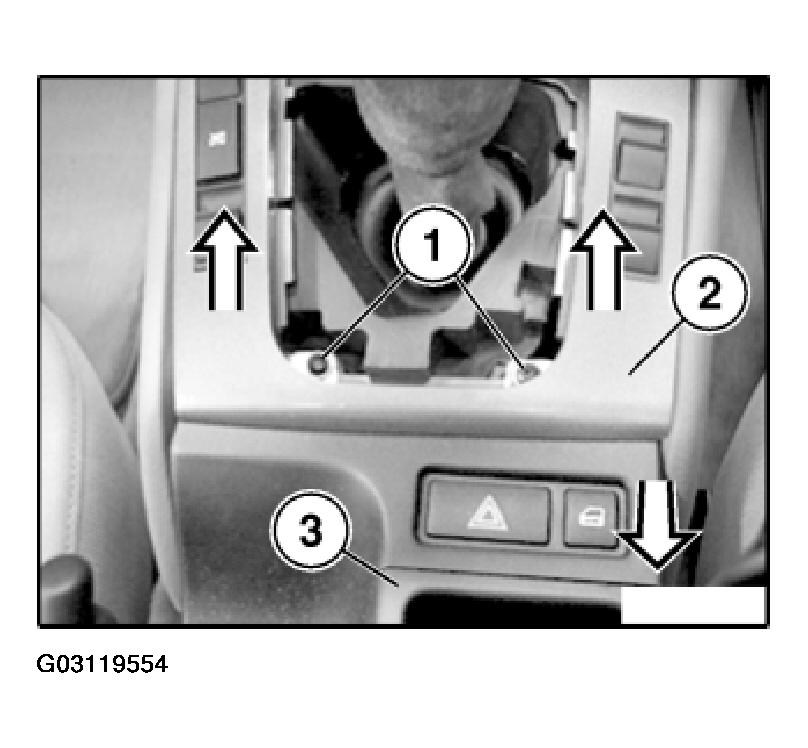

Fig 2: Folding Storage Compartment Floor Up

G03119554

Courtesy of BMW OF NORTH AMERICA, INC.

Fold storage compartment floor (2) up at rear and place to one side.

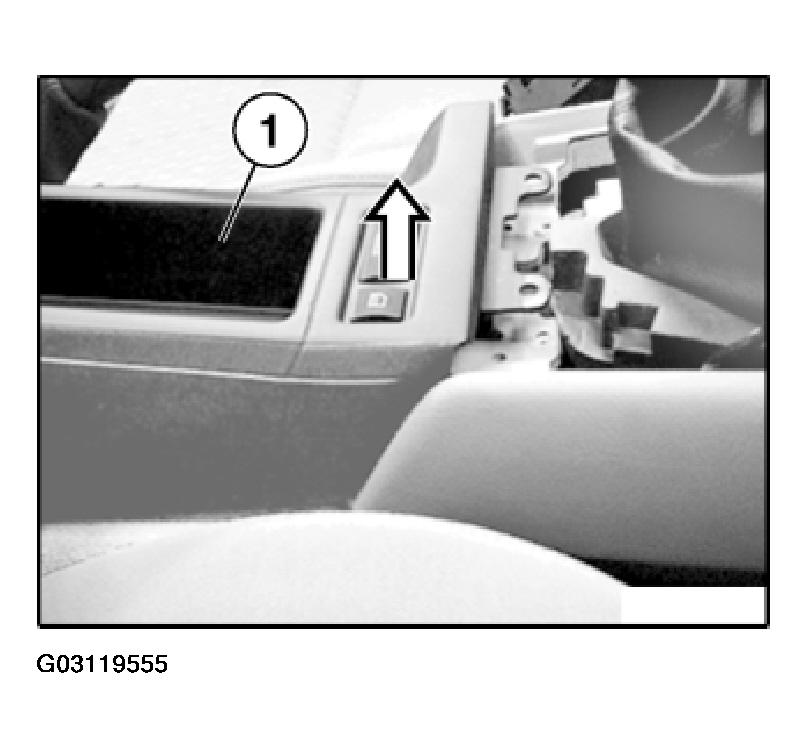

Fig 3: Raising Storage Compartment At Front

G03119555

Courtesy of BMW OF NORTH AMERICA, INC.

Raise storage compartment (1) at front slightly.

Press side catches and press switch for hazard warning system/central locking from below out of storage compartment (1).

Disconnect plug connection and remove switch for hazard warning system/central locking.

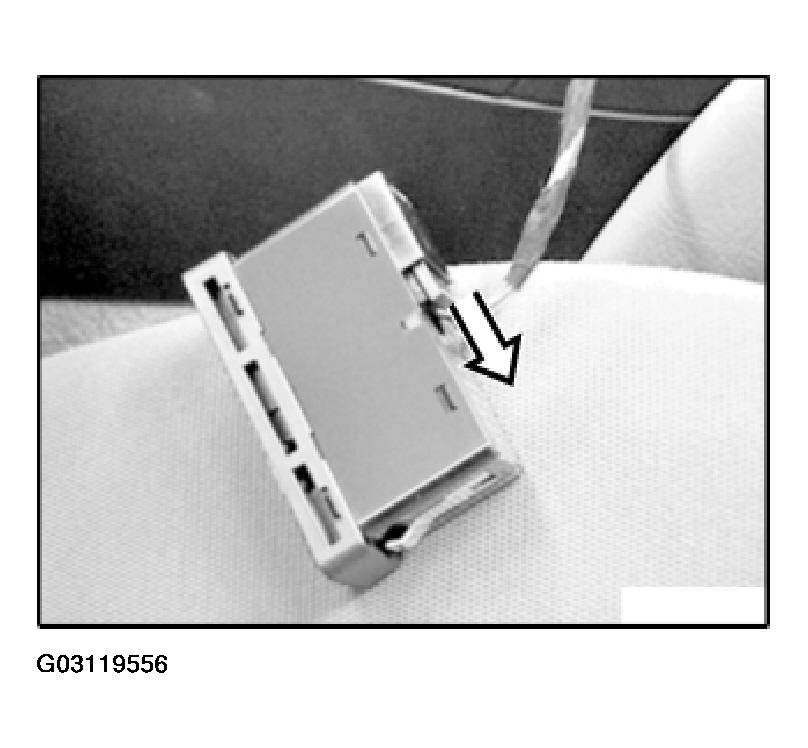

Fig 4: Removing Switch For Hazard Warning System/Central Locking

G03119556

Courtesy of BMW OF NORTH AMERICA, INC.
