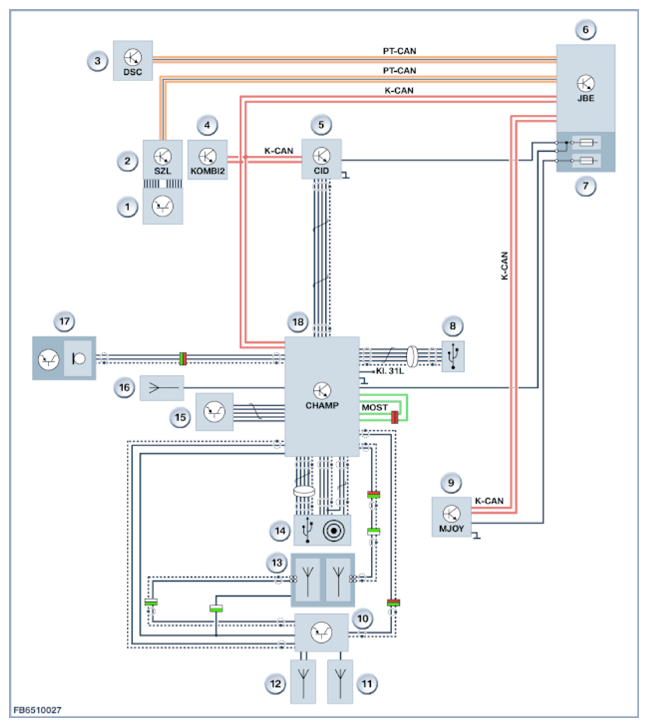

| 1 |
Multifunction steering wheel |
| 2 |
Steering column switch center (SZL) |
| 3 |
Dynamic stability control (DSC) |
| 4 |
Auxiliary instrument (KOMBI2) |
| 5 |
Central information display (CID) |
| 6 |
Junction Box Electronics (JBE) |
| 7 |
Front fuse and relay module |
| 8 |
USB port in the glove box |
| 9 |
MINI joystick (MJOY) |
| 10 |
Diversity aerial |
| 11 |
FM aerial |
| 12 |
FM aerial |
| 13 |
FM/AM aerial and GPS aerial |
| 14 |
USB port in center console |
| 15 |
Diagnostic socket |
| 16 |
Bluetooth aerial |
| 17 |
Microphone in overhead control panel |
| 18 |
Central Head unit and Multimedia Platform (CHAMP) |
