00 00... Information/warning labels
Courtesy of BMW OF NORTH AMERICA, INC.

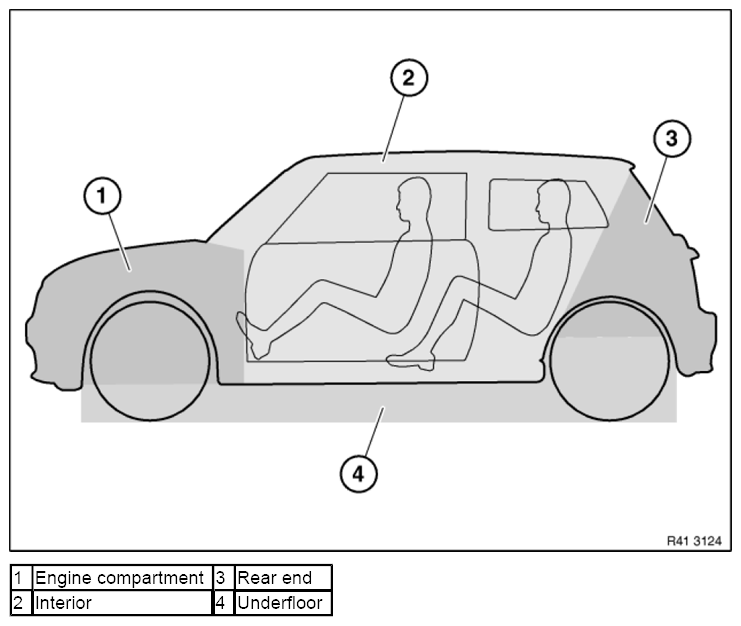

| 1 |
Engine compartment |
| 2 |
Interior |
| 3 |
Rear end |
| 4 |
Underfloor |
Location: Information/warning label: Country:
| Engine compartment (1): |
| Radiator bracket, top |
Refrigerant |
All with S530A/S534A |
| Radiator bracket, top |
Radiator fan |
All |
| Support carrier, outer |
Laser - production date |
Great Britain, Australia only |
| Support carrier, outer |
Laser - exterior paint |
US, CDN, Japan, Australia, Gulf States only |
| Ignition coil cover |
Ignition coil |
All |
| Second bulkhead |
Laser - brake fluid |
CDN only |
| Servo reservoir cap |
Hydraulic steering fluid reservoir |
All |
| Support carrier, outer |
Exhaust gas |
US, CDN only |
| Cylinder head |
"MINI Recommends Castrol" |
Diesel RB11 & RB12 only |
| Tension strut with hydro-mount |
Do not lash down |
Nat. var. China/CKD |
| Interior (2): |
| Windscreen |
Vehicle identification number |
All |
| Windscreen, inner |
Airbag |
All |
| Instrument panel |
Airbag |
US, CDN |
| Side trim panel, rear |
Lock, through-loading |
All |
| Fuse box, inner |
Fuse assignment |
All |
| Trim, cowl panel |
Soft top, warnings |
All |
| Complete vehicle, bodyshell: |
| B-pillar, inner left |
Manufacturer's certificate |
US, CDN, Gulf States |
| B-pillar, inner left |
Tire inflation pressure |
EU, Australia, CDN |
| B-pillar, inner left |
Runflat indicator |
All |
| B-pillar, inner right |
Front passenger airbag |
All except US |
| B-pillar, inner right |
Barcode laser - EC type plate with model designation, vehicle identification number, color code |
Not US, CDN, Japan, Australia, Gulf States |
| Fuel filler flap |
Fuel |
All |
| Tank cap |
Diesel fuel |
Diesel only |
| Rear end (3): |
| Trim panel, luggage compartment floor |
Pictogram, spare wheel raising |
With S300A only |
| Flap, side trim panel, rear |
First aid kit |
With S428A only |
| Rear lid, outer |
Barcode |
Great Britain, US, CDN |
| Rear lid, left |
Breakdown assistance, accident hotline |
Germany only |
| Rear Lid |
Load |
R52 only |
| Underfloor (4): |
| Steering spindle |
Airbag (basic setting) |
Germany only |
Key:
EU = European Union
CDN = Canada
US = United States
