System functions: Notes

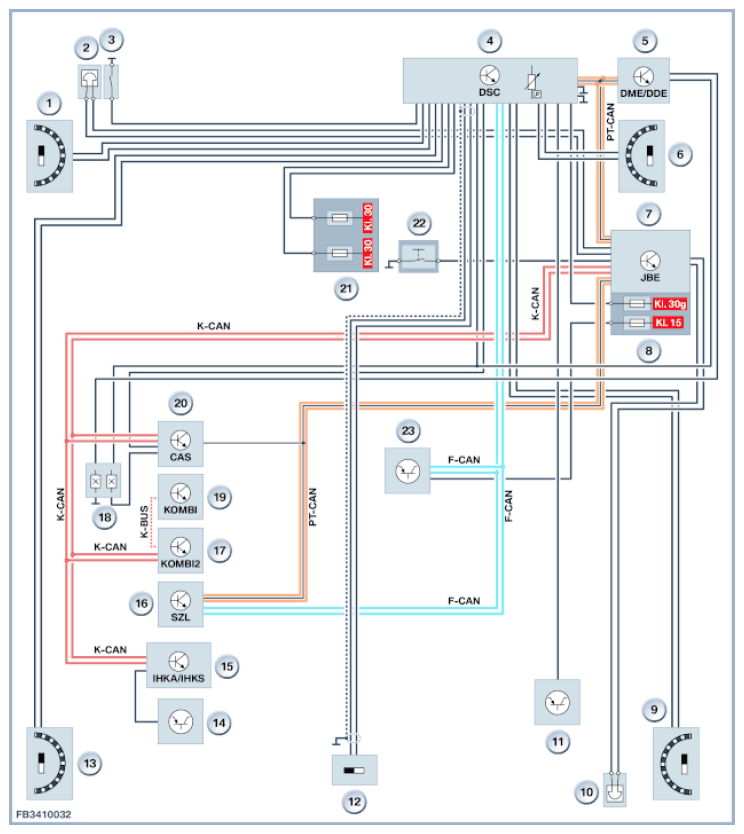

The following illustrations show the functional networking.

Fig 1: DSC Control Functional Networking Wiring Diagram
G11018232Courtesy of BMW OF NORTH AMERICA, INC.
INSTRUMENT PANEL PARTS DESCRIPTION

Item Explanation
1 Front left wheel speed sensor
2 Brake pad wear sensor, front left
3 Brake fluid level switch
4 Dynamic stability control (DSC)
5 DME (Digital Engine Electronics)
6 Front right wheel speed sensor
7 Junction Box Electronics (JBE)
8 Front fuse and relay module
9 Rear right wheel speed sensor
10 Brake pad wear sensor, rear right
11 DSC sensor
12 4WD coupling
13 Rear left wheel speed sensor
14 DTC button (in center console control panel)
15 Integrated automatic heating and air conditioning (IHKA) or integrated heating and air-conditioning control (IHKS)
16 Steering column switch center (SZL)
17 Auxiliary instrument (KOMBI2)
18 Brake light switch
19 Instrument panel (KOMBI) 20 Car access system (CAS)
21 Power distribution box, engine compartment
22 Brake fluid level switch

The following system functions are described for the DSC:

The following additional functions that do not belong to driving dynamics control are integrated:
