61 13... Unlocking and disconnecting different plug connections

Differences in the details of the size and shape of the plug connections are possible.

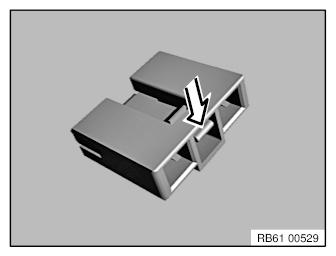

1. Press lock and open release clip in direction of arrow.

   Disconnect plug connection.

   Fig 1: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.

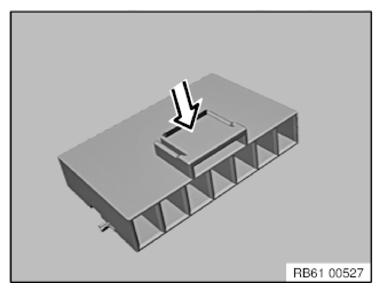

2. Press lock and open release clip in direction of arrow.

   Disconnect plug connection.

   Fig 2: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.

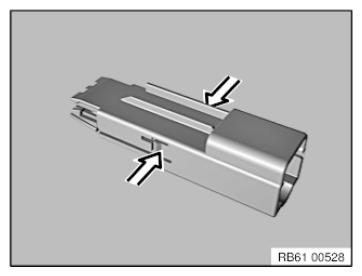

3. Open release clip in direction of arrow and disconnect plug connection in direction of arrow.
   Fig 3: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
4. Press lock and disconnect plug connection in direction of arrow.
   Fig 4: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
5. Press lock and disconnect plug connection in direction of arrow.
   Fig 5: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
6. Press lock and disconnect plug connection in direction of arrow.
   Fig 6: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
7. Press lock and disconnect plug connection in direction of arrow.
   Fig 7: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
8. Press lock and disconnect plug connection in direction of arrow.
   Fig 8: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
9. Press lock and disconnect plug connection in direction of arrow.
   Fig 9: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
10. Press the lock and detach plug connection.
    Fig 10: Detaching Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
11. Press the lock and detach plug connection.
    Fig 11: Detaching Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
12. Press the lock on both sides and detach plug connection.
    Fig 12: Detaching Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
13. Press the lock and detach plug connection.
    Fig 13: Detaching Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
14. Press lock and open release clip in direction of arrow.

    Disconnect plug connection.

    Fig 14: Disconnecting Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
15. Press the lock and detach plug connection.
    Fig 15: Detaching Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
16. Pull out lock and press.

    Disconnect plug connection.

    Fig 16: Disconnecting Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
17. Press the lock and detach plug connection.
    Fig 17: Detaching Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
18. Press the lock and detach plug connection.
    Fig 18: Detaching Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
19. Press the lock and detach plug connection.
    Fig 19: Detaching Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
20. Plug connection, e.g. on the power distribution box:

    Press into the opening (2) using a suitable tool (1).

    Pull off plug connection (3) upwards.

    Fig 20: Pulling Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
21. Plug connection, e.g. on the power distribution box:

    Lift lock (1) with a suitable tool.

    Pull off plug connection (2) upwards.

    Fig 21: Pulling Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
