66 53 ... Instructions For Adapting Adjustment Unit For Reversing Camera (CORGHI KDS Quick - Action Clamp)

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

The following operations should only be carried out when using the tool kit for calibrating the reversing camera for the first time.

NOTE: The operation is described for the left-hand side; proceed in the same way for the right-hand side.

Remove support plate (1) from spindle (2).

Replace spindle (2) by spindle (3).

Press support plate (1) on to spindle (3).

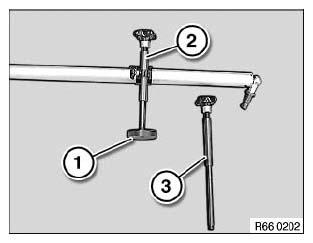

Fig 1: Identifying Support Plate And Spindle

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).

Remove ball pin (2) from rod (3).

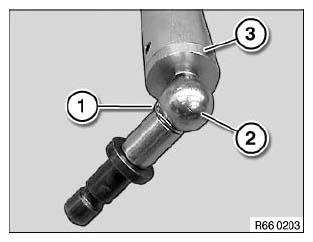

Fig 2: Identifying Ball Pin, Rod And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Fit new ball pin (1) on rod (2) and secure with retaining clip (3).

Fit ball pin (1) on CORGHI KDS quick-release clamp and secure.

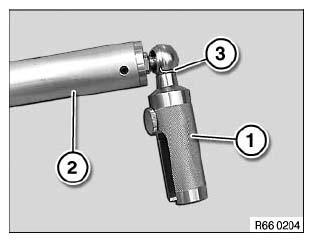

Fig 3: Identifying Rod, Ball Pin And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all spacers (1) on cross bar (2).

NOTE: Follow the same procedure for calibrating the reversing camera.

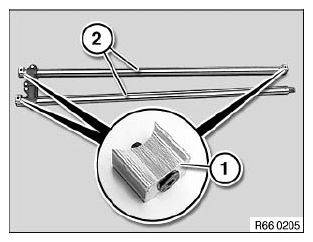

Fig 4: Identifying Spacers On Cross Bar
