16 14 500 Removing And Installing Or Replacing Control Unit For Electric Fuel Pump

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove lower section of right side trim panel . See 51 43 034 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT LOWER SIDE TRIM SECTION .

Disconnect plug connection (1).

Release nuts (2) and remove control unit (3).

Installation:

Tightening torque, see 16 14 2AZ in 16 14 FUEL PUMP .

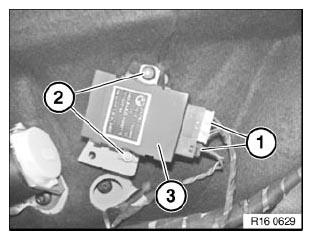

Fig 1: Identifying Control Unit And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding . See VEHICLE PROGRAMMING AND CODING .
