31 00... Front Axle + Steering: Wheel/Chassis Alignment Check Must Be Carried Out After The Following Work

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

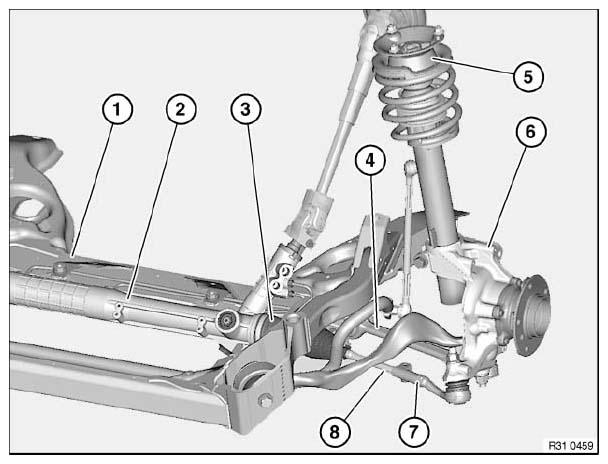

Fig 1: Identifying Front Axle And Steering Components

Courtesy of BMW OF NORTH AMERICA, INC.

A wheel/chassis alignment check must be carried out after the following work. See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE-HEIGHT MEASUREMENT WITHOUT LOAD :

Release of following screw/bolt connections:
- Steering gear to front axle carrier
- Control arm to front axle carrier
- Support bearing to body (if centering pin is missing)
- Tie rod end to tie rod
Replacement of following parts:
1. Front axle carrier
2. Steering gear
3. Gaiter (if the tie rod end has to be screwed off)
4. Control arm
5. Support bearing (if centering pin is missing)
6. Swivel bearing
7. Tie rod end
8. Tie rod
