51 71... Removing And Installing/Replacing Radiator Seal
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Scalding hazard!
Only perform work after engine has cooled down.
IMPORTANT:
Observe safety instructions
for raising the vehicle. See 00...... LIFTING VEHICLE WITH A LIFTING PLATFORM
.
Necessary preliminary tasks:
- Remove front underbody protection
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

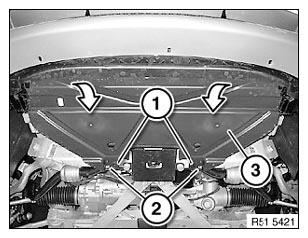

Release screws (1).
If necessary, remove underbody protection bracket.
Release catches (2) and feed out radiator seal (3) towards rear.
Installation:

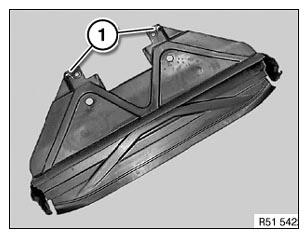

Catches (1) must not be damaged
