61 35 950 Removing and installing/replacing control unit for Comfort Access System (Passive Go)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .

Necessary preliminary tasks:

Remove flap in right luggage compartment wheel arch trim . See 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

E70:

Lift back insulating mat (1).

Disconnect plug connection (3).

Unlock catch (2) and remove control unit for Comfort Access System (4) from device carrier (5).

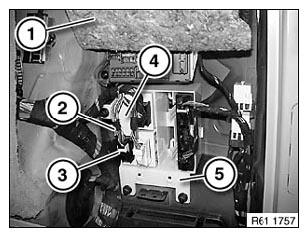

Fig 1: Identifying Plug Connection And Device Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
