61 13... Butt connector for repairing a plug connection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 61 0 300
- 61 9 040
NOTE:
IMPORTANT:
- Identify cause of damage (e.g. sharp-edged body parts, faulty electrical loads, jammed mechanisms, corrosion caused by ingress of water, etc.).
- Read out fault memory
- Eliminate cause of damage.
- Disconnect battery negative terminal.
- Make sure that no safety-related system according to connection scheme (e.g. anti-lock braking system, active rear-axle kinematics, airbags, etc.) are influenced. Otherwise replace faulty wiring harness or use repair cable (sourcing reference: BMW Parts Service)
- Carry out function test and read out fault memories again
- Eliminate new faults if applicable and clear fault memories
NOTE:
The repair range IV for vehicle electrical system contained the required special tools and individual parts for retrofitting and repair work with the aid of fan connectors.
The case can no longer be ordered. Order individual parts for wiring harness repair through BMW Parts Service.
The case can no longer be ordered. Order individual parts for wiring harness repair through BMW Parts Service.
Special tools:
- special tool 61 9 040

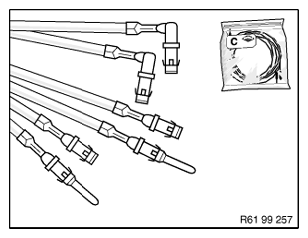

Choose repair kit.
Example: Repair kit, circular plug system D 2.5.
Remove following parts:
- Prepackaged end of cable with requisite wire cross-section
- Crimp connector for selected wire cross-section
- Shrink-fit hose
Open secondary lock on housing.

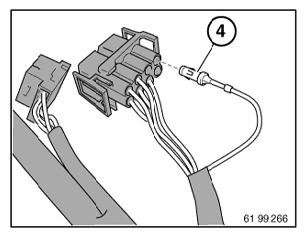

Mark damaged contact (4) with socket number of housing and press it out of housing using relevant special tool contained in special tool kit 61 0 300 .
IMPORTANT:
- Check maximum length of repair cable
- If more than one wire is to be repaired, the individual interfaces must be offset so that the wiring harness is not too thick at the repaired point.
Observe following procedure:
- Cut off wire with faulty contact at point which is easily accessible

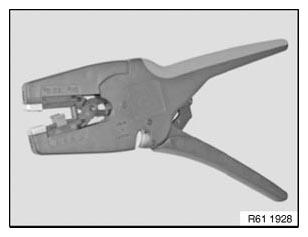

- Strip insulation from end of wire at wiring harness end
- Cut preassembled wire end to length and strip insulation

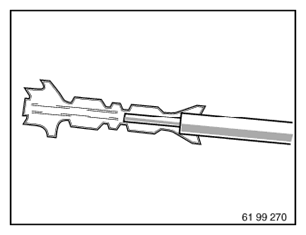

Crimp butt connector on preassembled wire end.

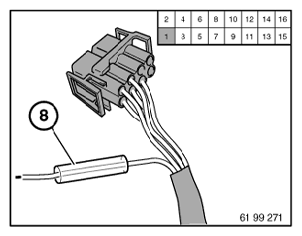

Push shrink-fit hose (8) onto free wire end.

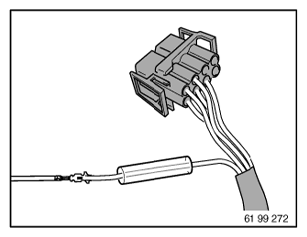

Crimp unused wire end to butt connector.
Pull shrink-on sleeve over butt connector.
IMPORTANT:
Do not burn shrink-on sleeve.
With hot air blower, shrink the shrink-on sleeve on both sides (9) of shrink-fit hose until glue emerges uniformly all round.
Insert contact in housing.
Close secondary lock on housing.
