61 31 009 Repairing steering column switch cluster (SZL)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .

Necessary preliminary tasks:

Remove volute spring cassette
Spread antistatic mat
Use antistatic wrist trap with connecting line

IMPORTANT: Extreme cleanliness is required!

NOTE: Installation is described separately.

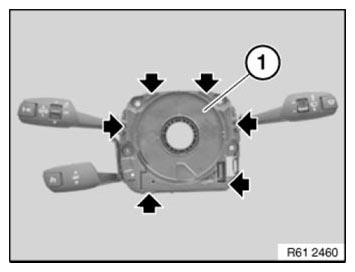

Removal: Unlock retaining lugs on upper housing section (1) with a suitable tool. Remove upper housing section.

Fig 1: Locating Retaining Lugs On Upper Housing Section

Courtesy of BMW OF NORTH AMERICA, INC.

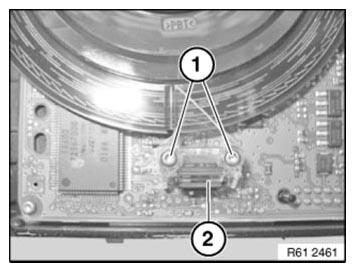

Release screws (1) in optical element (2).

Fig 2: Identifying Screws And Optical Element

Courtesy of BMW OF NORTH AMERICA, INC.

Important! Touch only the optical element.

NOTE: After removal, render optical element unusable and dispose of it in the appropriate manner.

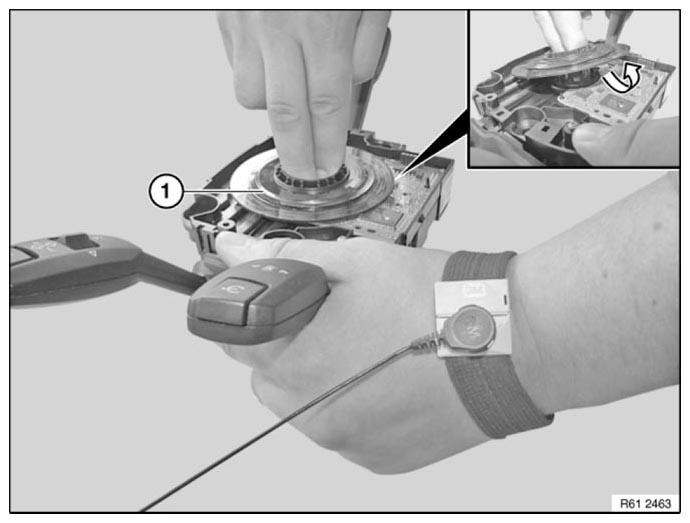

Unclip encoded disc (1) from rear of steering column switch cluster with plastic tube (2) supplied for the purpose. In this process, hold encoded disc by inserting two fingers in the hole.

Fig 3: Removing Encoded Disc From Rear Of Steering Column Switch Cluster With Plastic Tube

Courtesy of BMW OF NORTH AMERICA, INC.

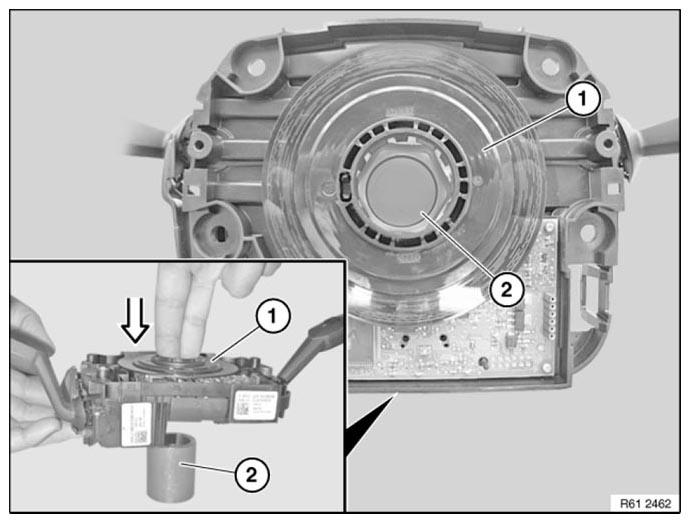

To prevent damage, tilt encoded disc (1) away from the printed circuit board when removing.

Fig 4: Tilting Encoded Disc Away From Printed Circuit Board When Removing

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: It is not permissible to clean the bearing points.

IMPORTANT: Make sure that encoded disc, optical element and printed circuit board do not come into contact with grease.

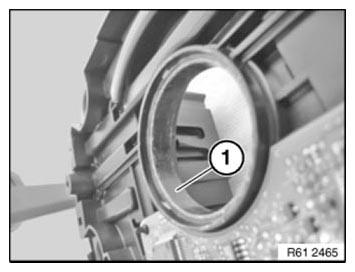

Apply grease supplied for the purpose to friction face (1) of bearing race of front of steering column switch cluster.

Fig 5: Identifying Friction Face Of Bearing Race

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: Thoroughly clean your hands before installation. Before installing the new parts, put on gloves and hair net included in the repair kit!

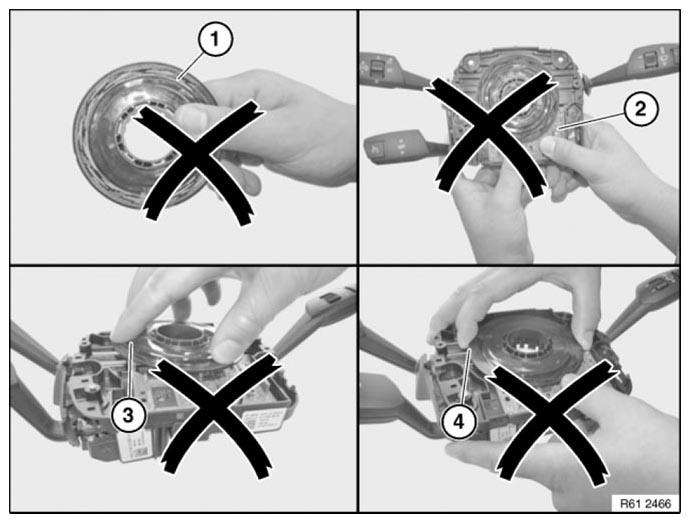

Important: Not permitted!

Do not touch encoded disc (1) with your fingers!
Do not touch printed circuit board (2)!
Do not apply pressure to encoded disc (3)!
Do not touch sides of encoded disc (4)!
Hold encoded disc (1) by inserting two fingers in the hole.
Position encoded disc centered in fixture and clip it in.

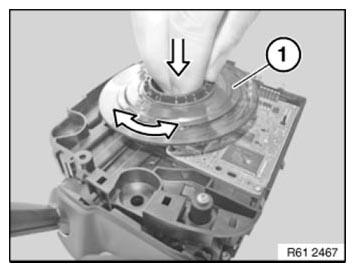

Turn encoded disc to and fro to spread the grease over the friction face

Fig 6: Precautions For Installing New Parts

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Holding Encoded Disc By Inserting Two Fingers In Hole

Courtesy of BMW OF NORTH AMERICA, INC.

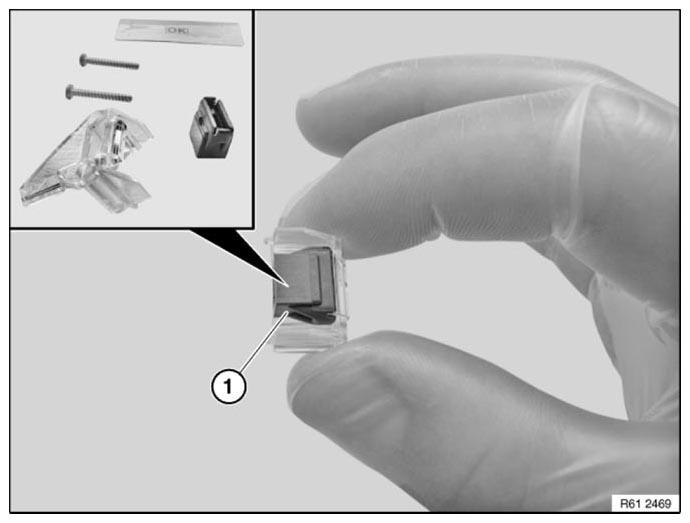

Assembly optical element (1) from individual parts included in the repair kit.

Fig 8: Assembling Optical Element From Individual Parts Included In Repair Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Secure optical element (2) with screws (1). Tightening torque: 0.26 Nm.

Fig 9: Identifying Screws And Optical Element

Courtesy of BMW OF NORTH AMERICA, INC.

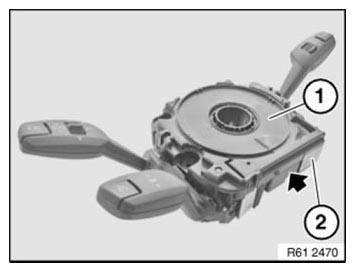

Clip upper housing section (1) into place. After inserting coil spring cassette, affix "CDS" label close to part-number label (2).

Fig 10: Identifying Upper Housing Section And Part-Number Label

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Make sure retaining lugs are correctly engaged.

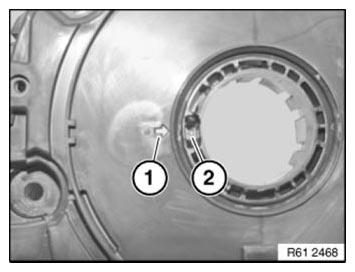

Installation note: Mark (1) and mark (2) must point to each other.

Fig 11: Identifying Mark (1) And Mark (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out steering angle sensor adjustment. See 32 10 005 ADJUSTMENT FOR ACTIVE FRONT STEERING .
