61 31 037 Removing and installing/replacing light control unit: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left fresh-air grille . See 64 22 135 REMOVING AND INSTALLING OR REPLACING LEFT FRESH-AIR GRILLE .

Press out light control unit (1) from inside.

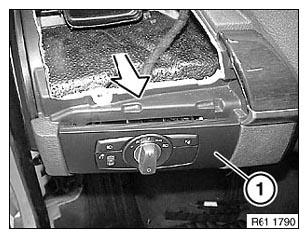

Fig 1: Identifying Light Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove light control unit.

Installation:

Make sure retainers (2) are correctly seated on trim of light control unit.

If necessary, replace faulty retainers.

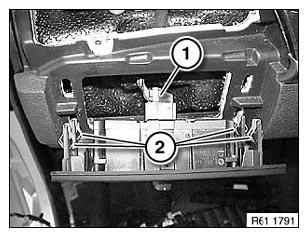

Fig 2: Identifying Plug Connection And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
