61 31 193 Removing and installing/replacing button unit (menu/voice input)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove center console trim . See 51 16 160 REMOVING AND INSTALLING/REPLACING CENTER CONSOLE TRIM (GEAR SELECTOR SWITCH) .

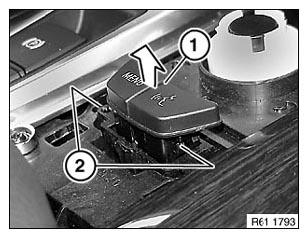

Unlock catches (2) and feed button unit (1) in direction of arrow out of controller.

Fig 1: Unlock Catches (2) And Feed Button Unit (1) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

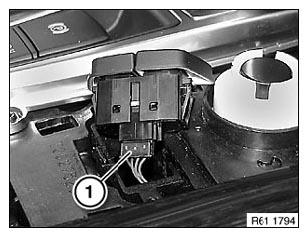

Disconnect plug connection (1) and remove button unit.

Fig 2: Disconnect Plug Connection (1) And Remove Button Unit

Courtesy of BMW OF NORTH AMERICA, INC.
