61 11... Installing repair cable for left Side View camera

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Work is shown on the E70 by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.

Necessary preliminary tasks:

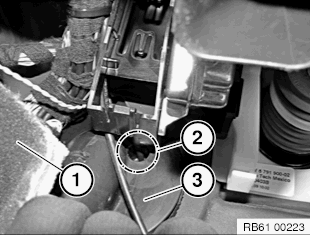

Carefully pull carpet (1) in driver's footwell downward. Break through opening (2) in rubber grommet (3) using a suitable tool.

Fig 1: Break Through Opening In Rubber Grommet
G00530135Courtesy of BMW OF NORTH AMERICA, INC.

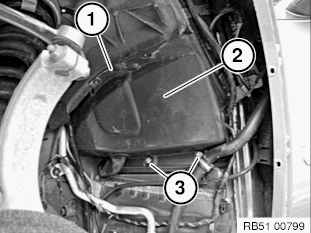

Undo clip (1) and screws (3). Remove cover (2).

Fig 2: Removing Cover
G00530136Courtesy of BMW OF NORTH AMERICA, INC.

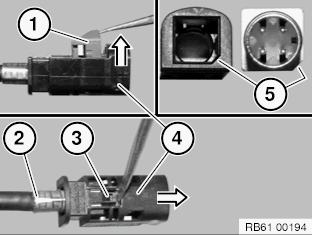

Unlock the lock (1) in direction of arrow with suitable tool.

IMPORTANT: Risk of damage!

Unlock the lock (3) carefully with a suitable tool. Pull connector housing (4) of line (2) in direction of arrow.

Fig 3: Pulling Connector Housing Of Line In Direction Of Arrow
G00530137Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:  Pay attention to encoding (5)!

NOTE: Repair cable (1) is laid from Side View camera (2) along wiring harness (4) in the wheel arch to the all-round vision camera control unit (6) in the driver's footwell.

Leave approx. 10 cm overlength in the area of Side View camera (2).

Connect repair cable (1) to Side View camera (2).

Lay repair cable (1) in direction of arrow behind support (3) along wiring harness (4) and secure to points marked with an arrow (picture A, B, C, D).

Feed through repair cable (1) at point (5) in driver's footwell (picture C). Assemble repair cable (1). Connect repair cable (1) to connector (8) of all-round vision camera control unit (6) (4th slot from below, picture D).

NOTE: Lay any repair cable (1) overlength under carpet (7).

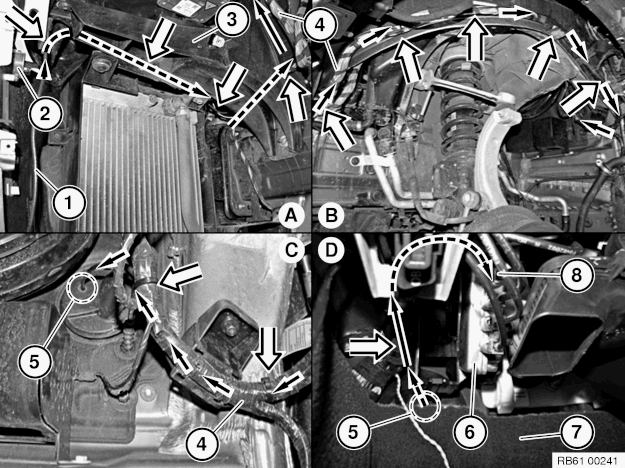

Fig 4: Routing Repair Cable
G00530138Courtesy of BMW OF NORTH AMERICA, INC.

After successful completion of function check  , detach start and end of faulty cable  at first mounting point.

IMPORTANT: To prevent moisture from entering the passenger compartment, seal opening (5) on the outside, using suitable means!
